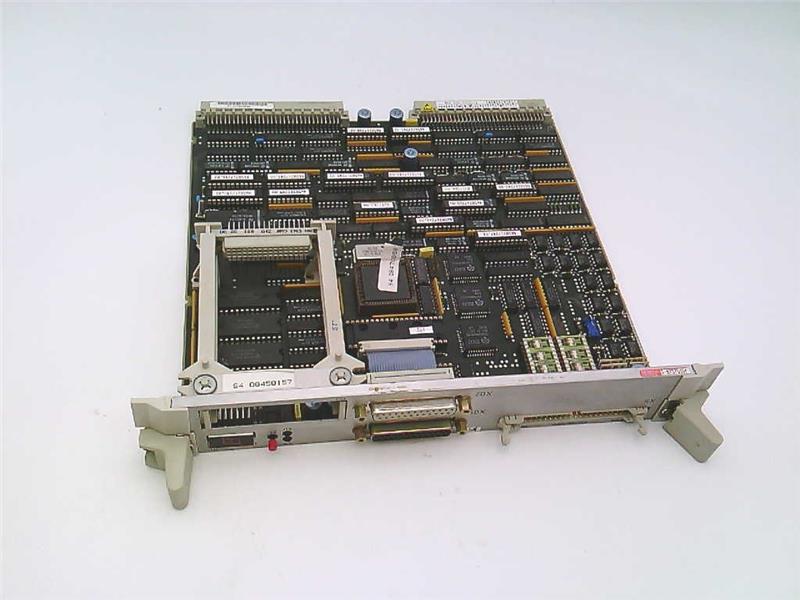

PM16 — Processor Board
Siemens · PM16 · 6DD1600-0AF0
Description
The PM16 is a processor module for the SIMADYN D modular digital control system, handling technological control, calculation, and regulation tasks above the drive-level torque control layer. It uses a CMOS 16-bit 80C186 microprocessor at 16MHz with 128K RAM, plug-in program memory submodules, 16 binary inputs/outputs, and two serial interfaces for communication with higher-level computers, PGs, and peripherals.
Key specifications
Parameter | Value |
Function | General technological control/calculation/regulation processor for SIMADYN D |
CPU | 80C186, 16-bit, 16 MHz, CMOS |
RAM | 128 KByte, battery buffered |
I/O (onboard) | 16 binary inputs, 16 binary outputs (no galvanic isolation) |
Communication | 2 serial interfaces (V.24/RS232, 20mA TTY, or RS485) |
Mounting/Rack | 2 slots in SIMADYN D racks SR1/SR2/SR4/SR5 |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | PM16 |
Part number | 6DD1600-0AF0 |
Category | Processor Board |
System family | SIMADYN D |
Stores quantity | 25 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Simadyn D Hardw_e new 32bit.pdf — SIMADYN D hardware manual (English) covering PM/MS/MM/EM/CS/SP module family
- 19_00_Simadyn_D_Control_System.pdf — SIMADYN D control-system overview
Notes
Verified via Siemens SIMADYN D Hardware User Manual (ADEGIS-hosted PDF).
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
