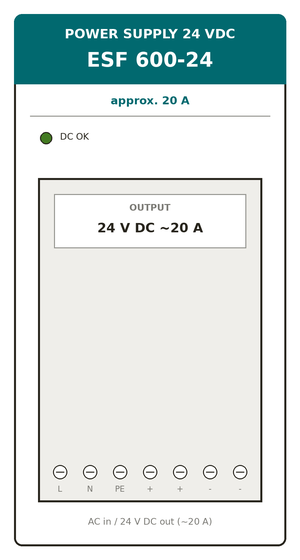

ESF 600-24 — Power Supply (24 V DC)
Fine Suntronix · ESF 600-24 · ESF 600-24
Description
Auxiliary / field 24 V DC power supply unit (ESF 600-24 series) rated for approximately 20 A output, providing the 24 V DC field / loop supply for I/O modules, sensors, actuators, and interposing relays in the Seawater Screen Control Panel. It converts the incoming AC line to a regulated, short-circuit-protected 24 V DC bus separate from the S5 PS 951 logic supply. It is held as a single unit.
Key specifications
Parameter | Value |
Function | Field / loop 24 V DC power supply |
Output rating | ≈ 20 A |
Supplies | I/O modules, sensors, actuators, interposing relays |
Protection | Regulated, short-circuit protected |
Note | Separate from the S5 PS 951 logic supply |
Reference
Field | Value |
Manufacturer (OEM) | Fine Suntronix |
Model | ESF 600-24 |
Part number | ESF 600-24 |
Category | Power Supply |
Installed location | Panel field supply |
Installed qty (this panel) | 1 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
