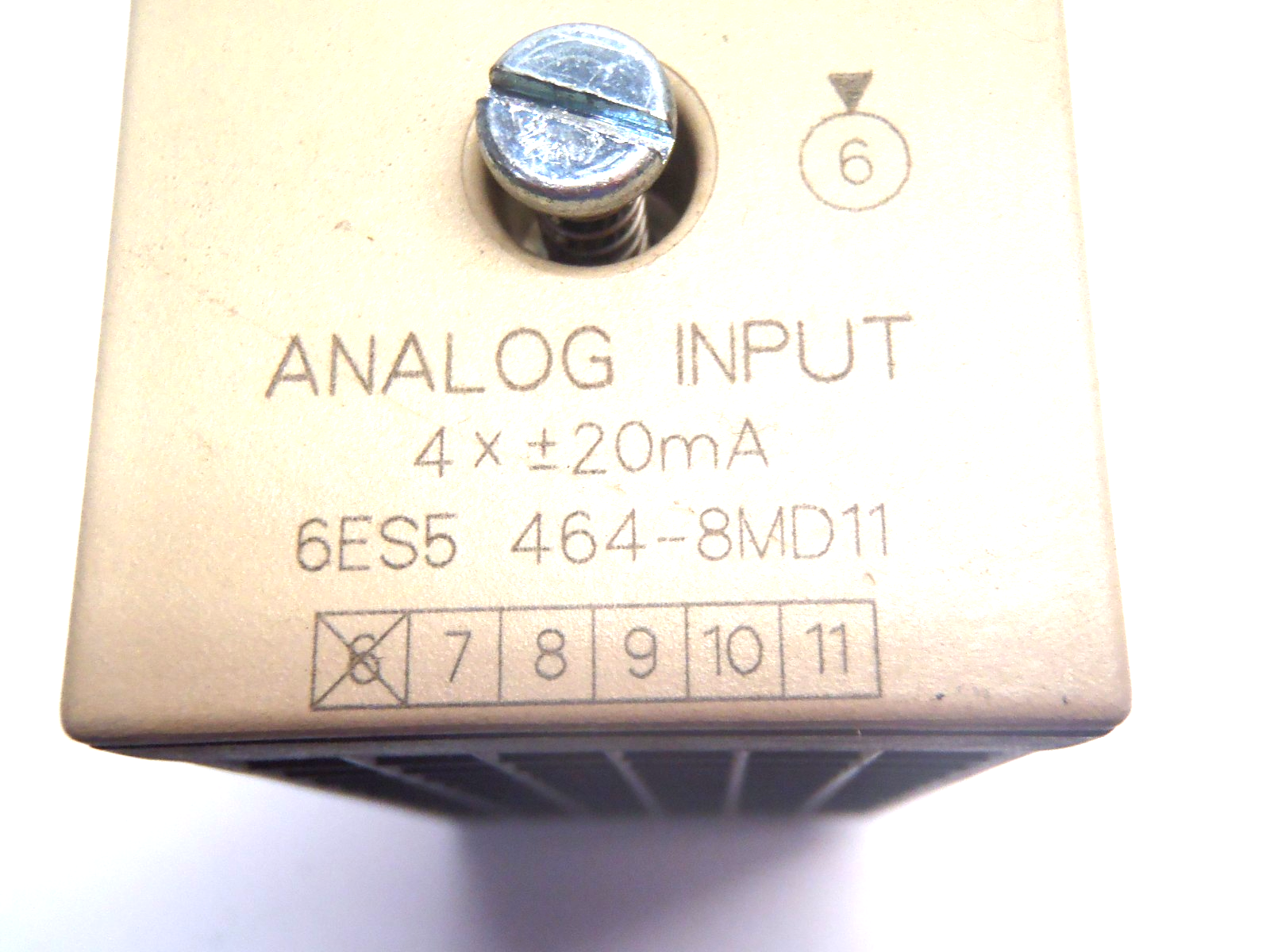

AI 464 — Analog Input Module
Siemens · AI 464 · 6ES5464-8MD11
Description
The AI 464 (6ES5464-8MD11, version 5) is an analog input module for the SIMATIC S5-90U/95U/100U family, providing 4 analog input channels for +/-20mA current signals, used for process measurement (e.g. 4-20mA transmitters).
Key specifications
Parameter | Value |
Function | Analog input module for S5-90U/95U/100U |
Channels | 4 analog inputs |
Signal range | +/- 20 mA current |
Version | Version 5 (per inventory desc) |
Mounting/Rack | S5-100U central or expansion rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | AI 464 |
Part number | 6ES5464-8MD11 |
Category | Analog I/O |
System family | SIMATIC S5-90U/95U/100U |
Stores quantity | 7 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual STEP5 S5-100U English.PDF — S5-100U system manual (English) covering CPU/IO/memory for the 100U programmable controller
Notes
464-series analog input module for S5-100U family confirmed via 6es7.pl (Polrad) and jc-electronics.com listings for related -8MD11/-8ME11 variants; exact 4x+/-20mA channel/range spec taken from inventory desc, cross-checked against family pattern. Verify nameplate.
