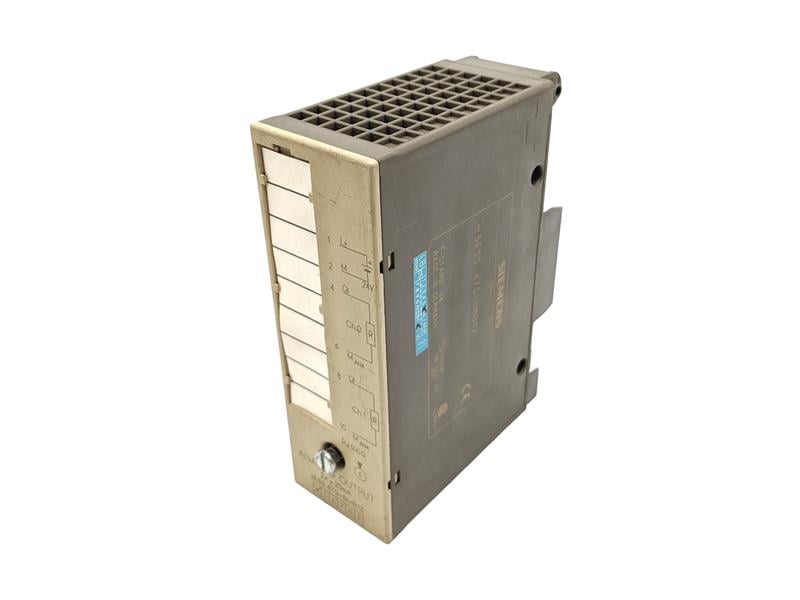

AO 470 — Analog Output Module
Siemens · AO 470 · 6ES5470-8MB12
Description
SIMATIC S5 470 analog output module, isolated, for S5-90U/-95U/-100U, ET 100U and ET 200U. Provides 2 isolated current outputs of ±20 mA for process actuator control.
Key specifications
Parameter | Value |
Function | 2x isolated analog current outputs |
Output range | ±20 mA |
Compatible controllers | S5-90U, S5-95U, S5-100U, ET 100U, ET 200U |
Channels | 2 |
Mounting/Rack | S5-100U I/O rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | AO 470 |
Part number | 6ES5470-8MB12 |
Category | Analog I/O |
System family | SIMATIC S5-100U |
Stores quantity | 4 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Manual STEP5 S5-100U English.PDF — S5-100U system manual (English) covering CPU/IO/memory for the 100U programmable controller
Notes
Confirmed via Siemens module map and Polrad datasheet matching exact order number and desc (2x±20mA).
