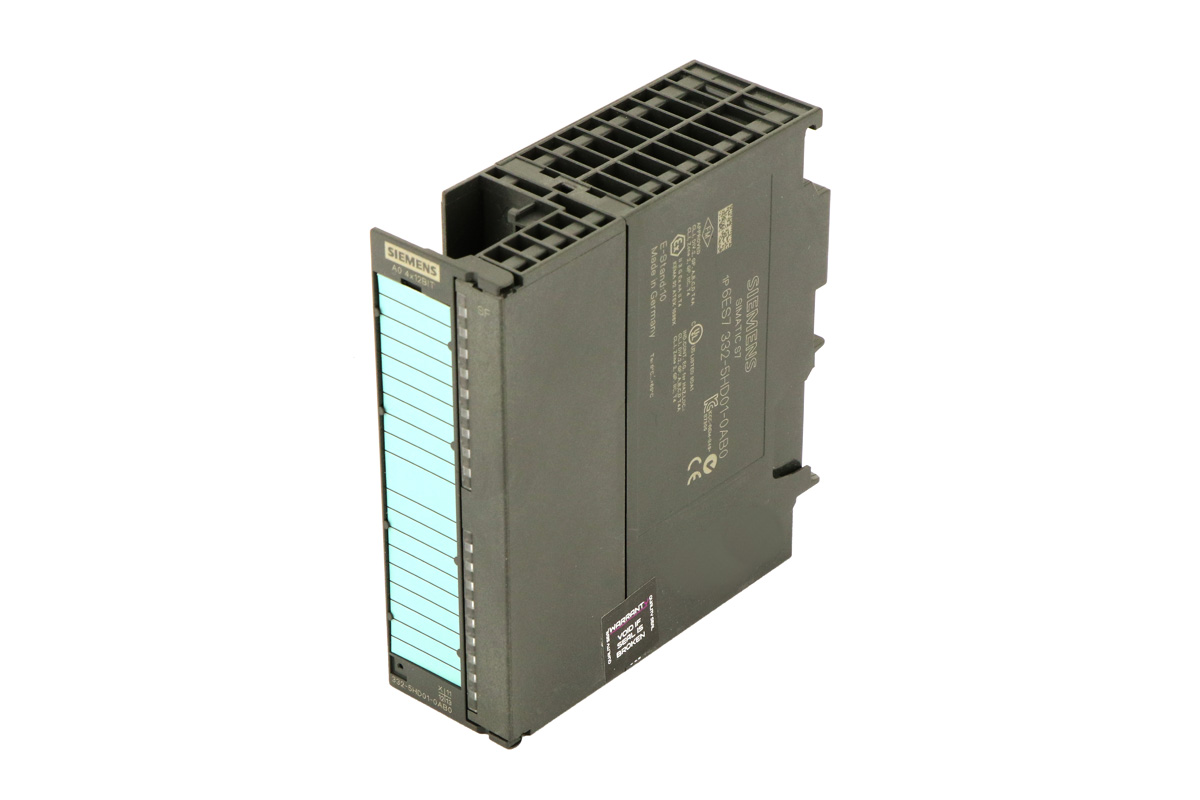

SM 332 (4AO) — Analog I/O
Siemens · SM 332 (4AO) · 6ES7332-5HD01-0AB0
Description
CORRECTION: the inventory labeled this part "DIGITAL I/O," but the 6ES7332 order-number prefix identifies it as an SM 332 ANALOG OUTPUT module for the S7-300 PLC, not a digital I/O module. The SM 332 (4AO) provides 4 configurable analog output channels (voltage or current) for driving actuators, valve positioners, or setpoint interfaces from the S7 program.
Key specifications
Parameter | Value |
Function | Analog output module, 4 channels, S7-300 (NOT digital I/O as originally labeled) |
Channels | 4 AO |
Signal types | Voltage and/or current outputs, configurable per channel (per SM332 family) |
Resolution | 11-12 bits (per SM332 family; verify exact variant) |
Isolation | Galvanically isolated from backplane bus |
Mounting | S7-300 rack, standard signal-module slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | SM 332 (4AO) |
Part number | 6ES7332-5HD01-0AB0 |
Category | Analog I/O |
System family | SIMATIC S7-300 |
GT stores quantity | 3 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Specs IO Modules.pdf — S7-300 I/O modules spec sheet; covers SM332 analog output family
Notes
CORRECTION FLAGGED per research brief: inventory desc says "DIGITAL I/O" but 6ES7332-5HD01-0AB0 is definitively an SM 332 4-channel analog output module (6ES7332 prefix = SM332 analog output family). Category/type/model corrected accordingly.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
