Description

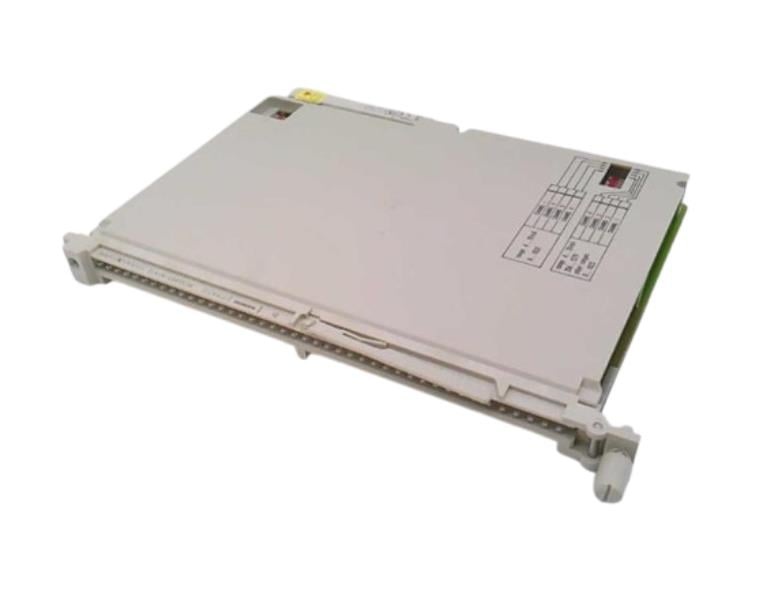

AI 463 — Analog Input Module
Siemens · AI 463 · 6ES5463-4UA12
Description
The AI 463 (6ES5463-4UA12) is an analog input module for the SIMATIC S5-135U/155U programmable controller, converting analog process signals (voltage/current) into digital values for processing by the CPU. Exact channel count and input ranges are per the 460/463 analog input module family for the 135U/155U range.
Key specifications
Parameter | Value |
Function | Analog input module for S5-135U/155U |
System | SIMATIC S5-135U/155U |
Signal type | Analog voltage/current inputs (exact range per plug-in range card; verify nameplate) |
Mounting/Rack | S5-135U/155U central or expansion rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | AI 463 |
Part number | 6ES5463-4UA12 |
Category | Analog I/O |
System family | SIMATIC S5-135U/155U |
Stores quantity | 10 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
463-series analog input module for S5-135U/155U identified by family/range convention (460/463/465 analog input modules); exact channel count and input range for -4UA12 not independently confirmed in available sources. Verify nameplate/datasheet for precise specs.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
