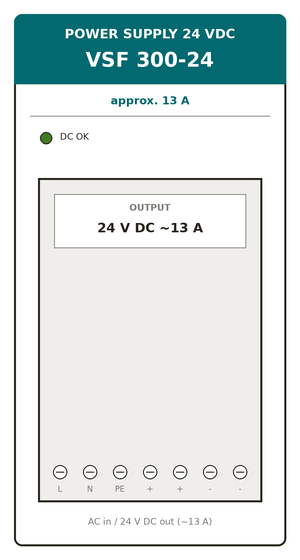

VSF 300-24 — Power Supply (24 V DC)
Fine Suntronix · VSF 300-24 · VSF 300-24
Description
Auxiliary / field 24 V DC power supply unit (VSF 300-24 series) rated for approximately 13 A output, supplying regulated 24 V DC to field instruments, output loads, and panel auxiliaries. It serves as a secondary / backup-capacity 24 V source alongside the ESF units, with short-circuit and overload protection. It is held as a single unit.
Key specifications
Parameter | Value |
Function | Field / loop 24 V DC power supply |
Output rating | ≈ 13 A |
Supplies | Field instruments, output loads, panel auxiliaries |
Protection | Regulated, short-circuit and overload protected |
Role | Secondary / backup-capacity 24 V source |
Reference
Field | Value |
Manufacturer (OEM) | Fine Suntronix |
Model | VSF 300-24 |
Part number | VSF 300-24 |
Category | Power Supply |
Installed location | Panel field supply |
Installed qty (this panel) | 1 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
