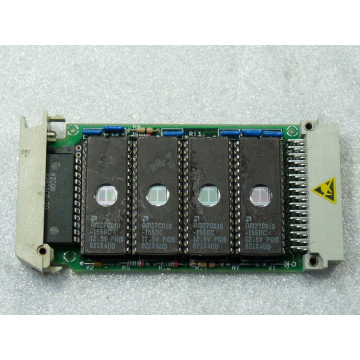

MS4 — Memory Submodule
Siemens · MS4 · 6DD1610-0AG0
Description
The MS4 (also referred to under related order numbers as MS3/MS31/MS4/MS45 series) is a plug-in program memory submodule for SIMADYN D processor boards (e.g. PM16), holding user programs and system firmware (operating system, supervisor program, function module code). It mounts in slot X50 of the processor board.
Key specifications
Parameter | Value |
Function | Program memory submodule (EPROM) for SIMADYN D processor boards |
Capacity | 512 Kbit (per desc "512K/MS4"; verify nameplate for exact byte/bit designation) |
Memory type | EPROM |
Compatible boards | PM16 and other SIMADYN D processor modules (mounting location X50) |
Mounting | Plug-in submodule, not separately rack-mounted |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | MS4 |
Part number | 6DD1610-0AG0 |
Category | Memory |
System family | SIMADYN D |
Stores quantity | 8 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Simadyn D Hardw_e new 32bit.pdf — SIMADYN D hardware manual (English) covering PM/MS/MM/EM/CS/SP module family
- 19_00_Simadyn_D_Control_System.pdf — SIMADYN D control-system overview
Notes
Exact 6DD1610-0AG0 datasheet not directly located; specs inferred from SIMADYN D memory submodule family documentation (MS3/MS31/MS4) and inventory desc. Verify capacity on nameplate.
