IM 153-2 — Interface Module
Siemens · IM 153-2 · 6ES7153-2AA02-0XB0
Description

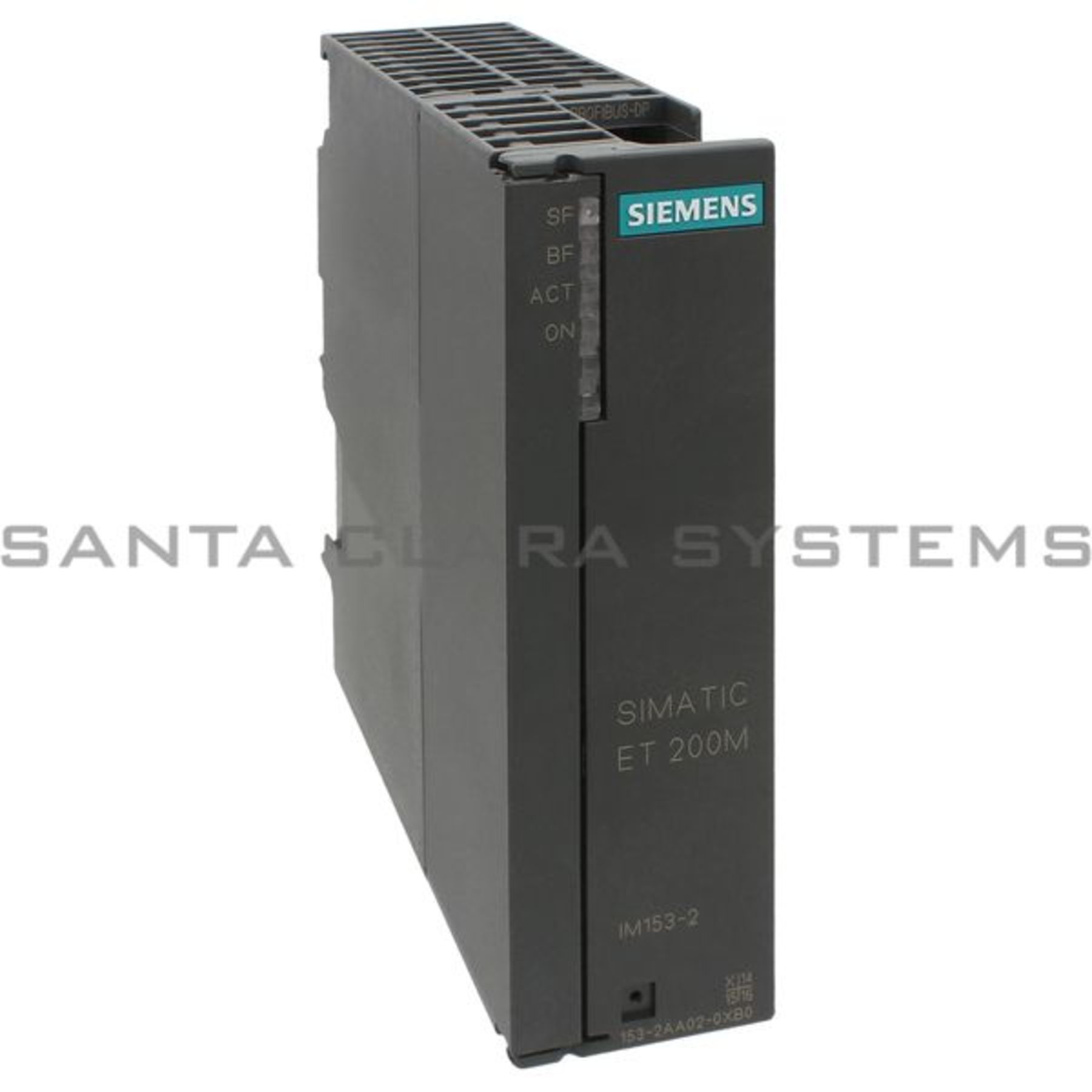

The IM 153-2 is the PROFIBUS-DP interface module for the ET 200M distributed I/O station, allowing standard S7-300 signal modules (SM3xx) to be mounted in a remote rack and addressed as PROFIBUS-DP slave I/O from a central S7 controller. It manages the DP protocol, diagnostics, and backplane-bus interfacing to the plugged-in S7-300 I/O modules.
Key specifications
Parameter | Value |
Function | PROFIBUS-DP interface module for ET 200M distributed I/O station |
Bus | PROFIBUS-DP, RS-485, 12 Mbit/s max |
I/O capacity | Up to 8 S7-300 signal modules per ET 200M station (interface-dependent) |
Diagnostics | Supports module/channel diagnostics reported to DP master |
Redundancy | -0XB0 variant supports non-redundant configuration (verify vs. -2BA0 redundant variant) |
Mounting | ET 200M mounting rail, head module position |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 153-2 |
Part number | 6ES7153-2AA02-0XB0 |
Category | Interface |
System family | ET 200M / SIMATIC S7-300 |
GT stores quantity | 144 |
Data confidence | high |
Manuals filed (007 - Manuals)
- ET200M Distributed IO Dev_M_07.00_E5_e.pdf — Direct ET 200M distributed I/O device manual covering IM 153-2 interface module
- ET200M Config Frame a.PAF.pdf — ET 200M configuration reference
Notes
Direct manual match found; largest quantity item in this inventory (144 units), consistent with widespread ET200M distributed I/O deployment.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
