Description

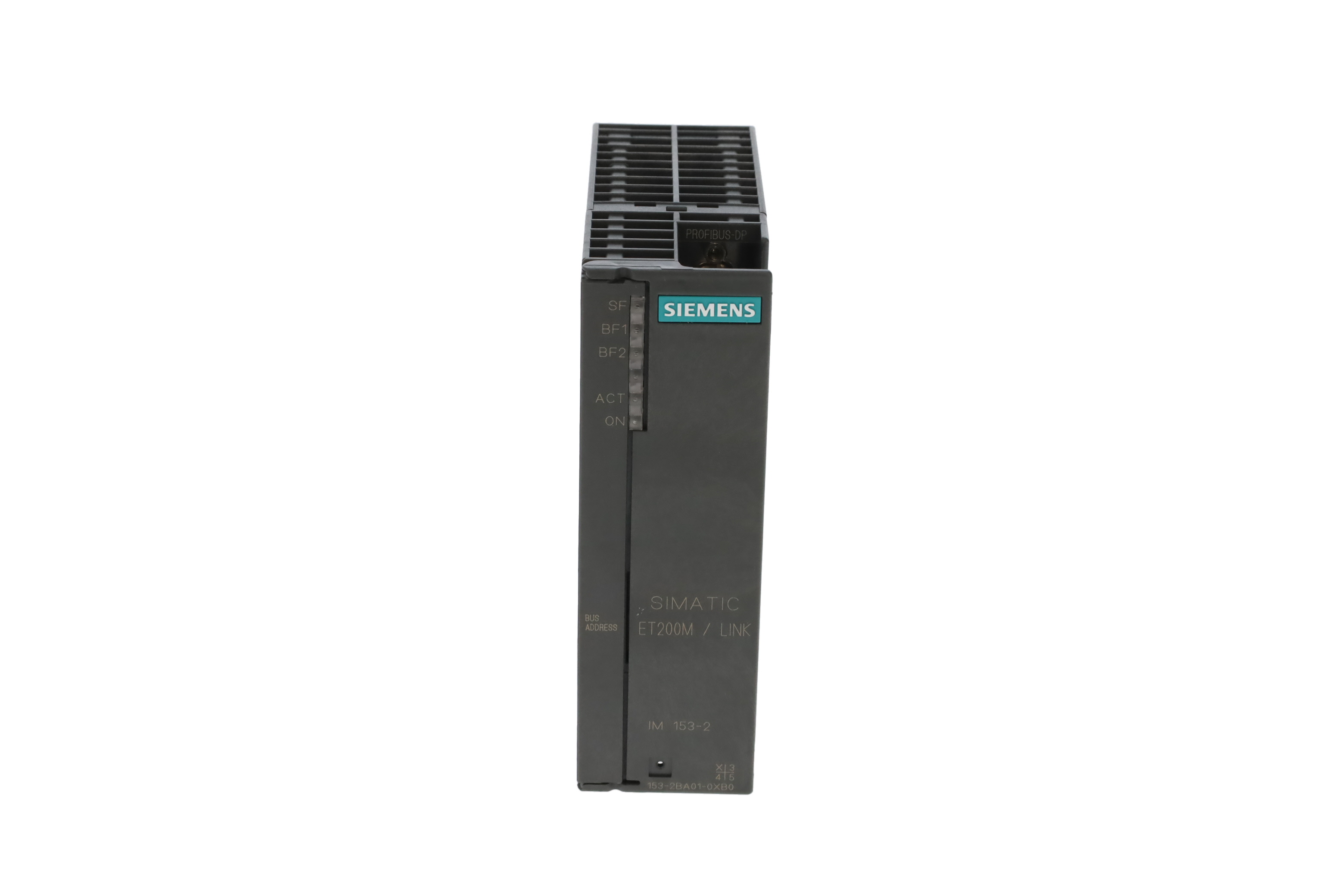

IM 153-2 High Feature — Interface Module
Siemens · IM 153-2 High Feature · 6ES7153-2BA01-0XB0
Description
SIMATIC DP ET 200M interface module IM 153-2 High Feature, connecting the ET 200M distributed I/O station to PROFIBUS DP for up to 8 S7-300 signal modules, with redundancy capability, time stamping, and support for isochronous mode.
Key specifications
Parameter | Value |
Function | PROFIBUS DP slave interface for ET 200M |
Max modules | 8 S7-300 modules (this hardware revision; later -0XB0 revisions support up to 12) |
Supply voltage | 24 V DC (20.4-28.8V range) |
Interface | PROFIBUS DP / RS-485, max 12 Mbit/s |
Features | Redundancy, time stamping (1ms accuracy), isochronous mode support |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 153-2 High Feature |
Part number | 6ES7153-2BA01-0XB0 |
Category | Interface Module |
System family | ET200M |
Stores quantity | 2 |
Data confidence | high |
Manuals filed (007 - Manuals)
- ET200M Distributed IO Dev_M_07.00_E5_e.pdf — ET200M distributed I/O device manual (English)
- ET200_e.pdf — ET200 system manual (English)
Notes
Confirmed via JC-Electronics and Polrad datasheets matching exact order number and full feature description.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
