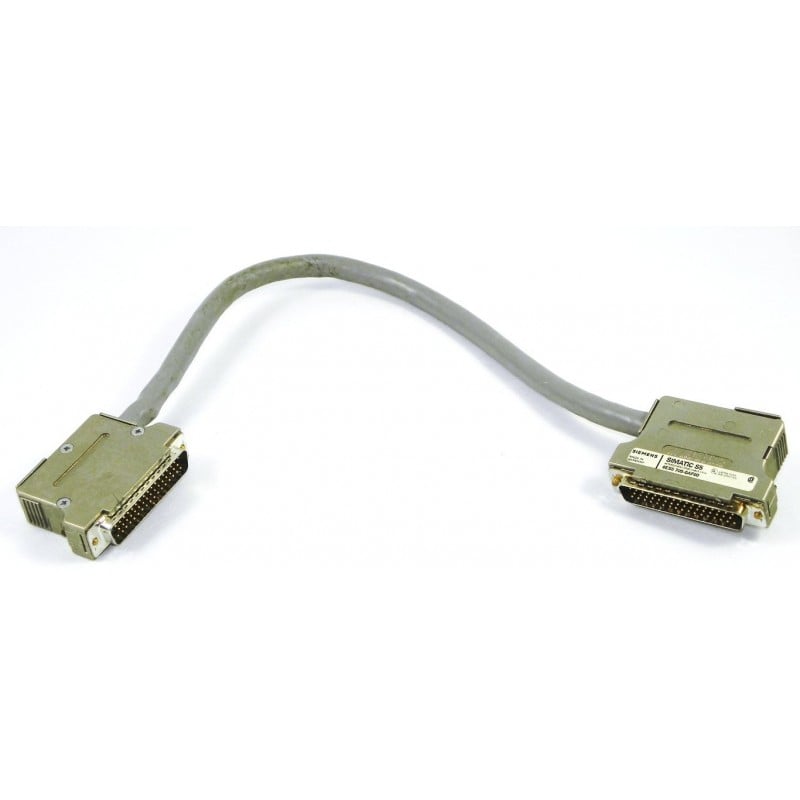

Bus Connector 705 — Cable
Siemens · Bus Connector 705 · 6ES5705-0AF00
Description
SIMATIC S5 705 connecting cable for centralized configuration with IM 306 interface module, used to connect expansion units to the central controller. Length 0.5 m.
Key specifications
Parameter | Value |
Function | Interconnecting cable for centralized (IM 306) expansion |
Length | 0.5 m |
Compatible module | IM 306 |
Application | Connects central controller to expansion unit (EU above/adjacent to CC) |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | Bus Connector 705 |
Part number | 6ES5705-0AF00 |
Category | Connector/Cable |
System family | SIMATIC S5-115U |
Stores quantity | 3 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Confirmed via JC-Electronics and sps-service datasheets matching exact part number, length, and IM 306 application.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
