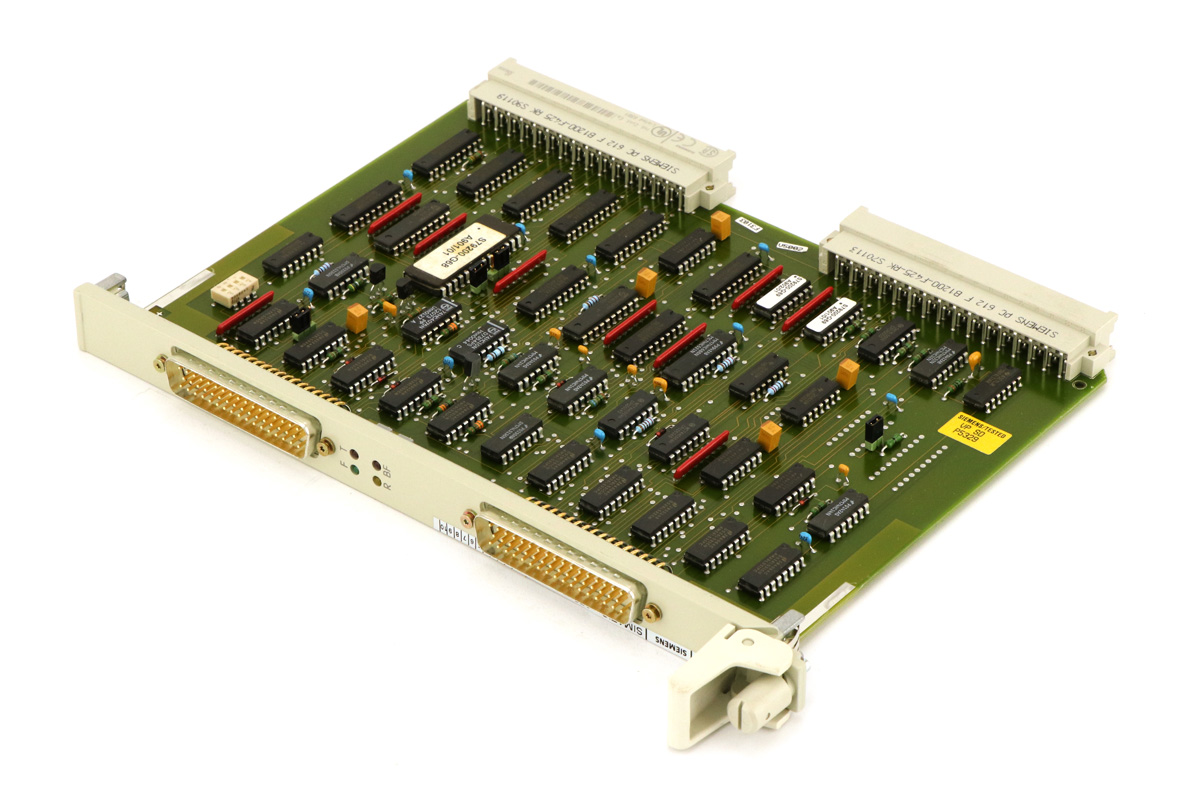

IM 314 — Interface Module
Siemens · IM 314 · 6ES5314-3UR11
Description
The IM 314 is an interface/coupling module used in S5-115U/155H systems to link central and expansion racks or to interface bus segments within the rack system. It plugs into a central-rack slot and works together with a partner IM at the expansion rack.
Key specifications
Parameter | Value |
Function | Rack interface/coupling module, S5-115U/155H |
Role | Central-rack side of a rack-to-rack or bus coupling pair |
Mounting | Central rack (ZG) slot |
Bus | S5 parallel rack bus (per family; verify exact link type on unit) |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 314 |
Part number | 6ES5314-3UR11 |
Category | Interface |
System family | SIMATIC S5-115U/155H |
GT stores quantity | 12 |
Data confidence | low |
Manuals filed (007 - Manuals)
- S5_155H_CPU948R_M_Vol.1_E06_99.08_e.pdf — S5-115U/155H system manual documents IM-series rack interface modules including IM 314
Notes
Limited independent web documentation found for the exact 6ES5314-3UR11 variant; function inferred from Siemens IM-series naming convention (IM3xx = S5-115U/155H interface modules). Recommend verifying exact coupling type/partner module on the physical unit.
