CSH1 — Communication Processor
Siemens · CSH1 · 6DD1661-0AB0
Description

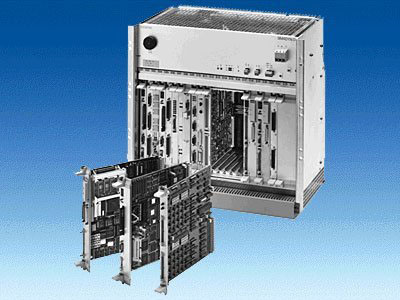

The CSH1 (Communication board SINEC H1, predecessor of CSH11) is a SIMADYN D communication module providing a SINEC H1 (Ethernet-based industrial LAN, ISO/TCP) interface for data exchange between SIMADYN D systems and higher-level automation systems such as SIMATIC S7-400. It is installed in a SIMADYN D rack alongside a processor module.
Key specifications
Parameter | Value |
Function | SINEC H1 (industrial Ethernet) communication board for SIMADYN D |
Network | SINEC H1 / ISO-TCP, data rate up to 10 Mbit/s (H1 standard) |
Typical use | Telegram-based data exchange with S7-400 or other SIMADYN D racks via NetPro/NCM S7 |
Mounting/Rack | SIMADYN D wide rack, requires processor module (P16/P32) present |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CSH1 |
Part number | 6DD1661-0AB0 |
Category | Communication Processor |
System family | SIMADYN D |
Stores quantity | 1 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Simadyn D Hardw_e new 32bit.pdf — SIMADYN D hardware manual (English) covering PM/MS/MM/EM/CS/SP module family
- 19_00_Simadyn_D_Control_System.pdf — SIMADYN D control-system overview
Notes
The successor module CSH11 (6DD1661-0AB1) is well documented; CSH1 (-0AB0) is the earlier revision with equivalent SINEC H1 function. Verify exact revision differences on nameplate.
