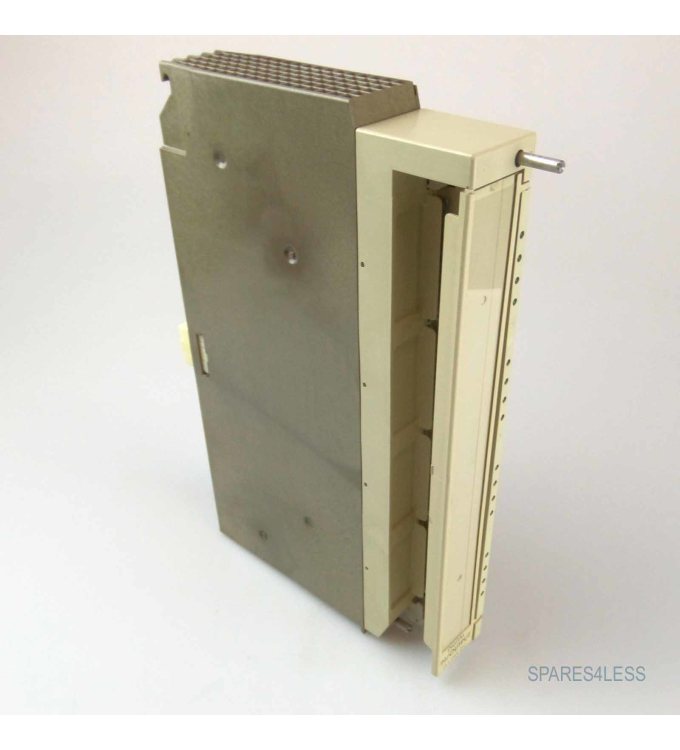

DI/DO 482 — Digital Input/Output Module
Siemens · DI/DO 482 · 6ES5482-7LF31
Description
SIMATIC S5 482 digital input/output module for the S5-115F fail-safe controller family, providing 16 digital inputs and 16 digital outputs at 24V DC.
Key specifications
Parameter | Value |
Function | 16 digital inputs / 16 digital outputs |
Input/Output voltage | 24 V DC |
Channels | 16 DI / 16 DO |
Compatible controllers | S5-115U/115F |
Mounting/Rack | S5-115U CR/ER rack |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | DI/DO 482 |
Part number | 6ES5482-7LF31 |
Category | Digital I/O |
System family | SIMATIC S5-115U |
Stores quantity | 21 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Cross-referenced against Siemens S5 module map listing 6ES5 482-7LF31 as 16 DI/16 DO module for S5-115F; specific electrical ratings (current per channel) not independently confirmed for this exact suffix — verify nameplate.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
