Description
SS52 interface — Communication

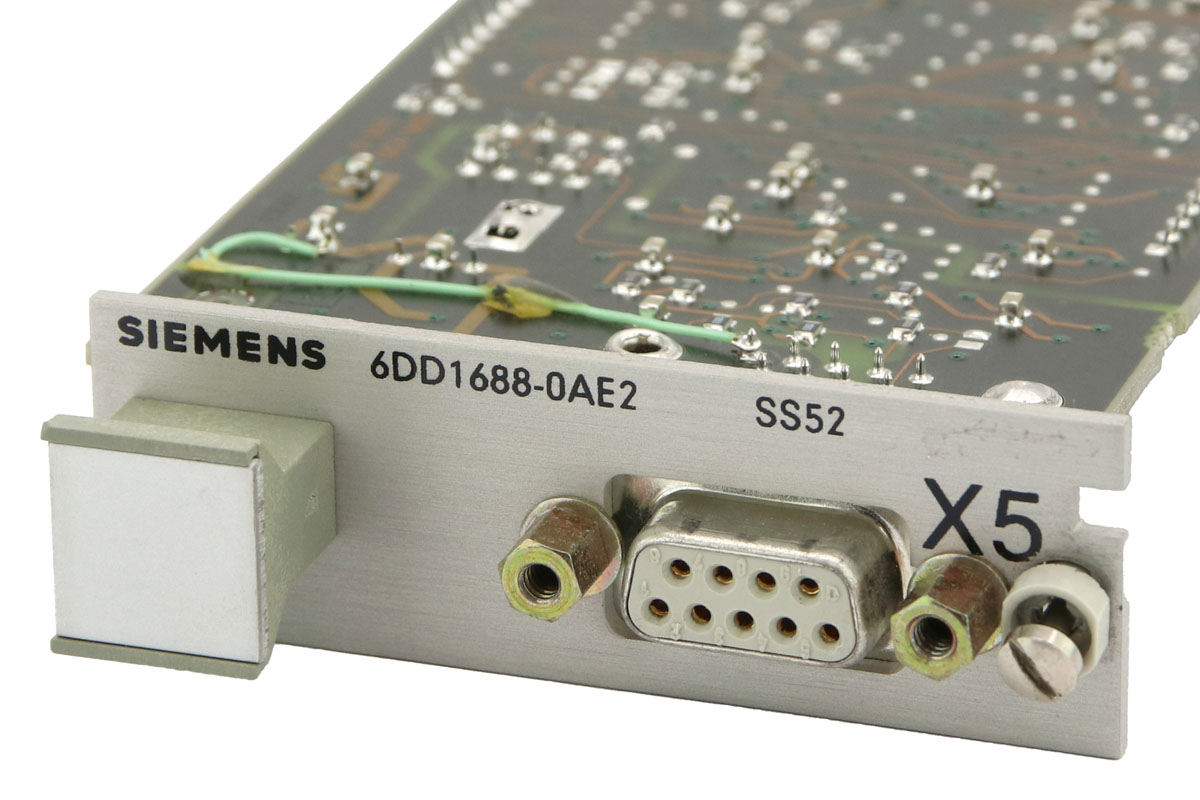

Siemens (SIMADYN D) · SS52 interface · 6DD1688-0AE2
Description
The SS52 is a communication submodule that plugs onto the CS7 carrier module in a SIMADYN D system, providing a PROFIBUS-DP master interface (SINEC L2-DP) for connecting operator panels and DP field devices to the SIMADYN D CPU rack.
Key specifications
Parameter | Value |
Function | Communication submodule for CS7, PROFIBUS-DP master interface |
Bus | SINEC L2-DP (PROFIBUS-DP) |
Carrier | Plugs onto CS7 carrier module (max. 3 submodules per CS7) |
Typical use | Connect SIMATIC operator panels and DP slaves to SIMADYN D MPI/DP bus |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | SS52 interface |
Part number | 6DD1688-0AE2 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 6 |
Data confidence | high |
Manuals filed (007 - Manuals)
- 9_Interface Operation System.PDF — SIMADYN D interface/operation system documentation, relevant to SS52 operator-panel connectivity
- Package-Montage.pdf — SIMADYN D hardware/assembly reference
Notes
Function directly confirmed by Aotewell reseller listing ("SIMADYN D COMMUNICATION SUBMODULE SS52 FOR CS7, MASTER INTERFACE FOR BUS SYSTEM SINEC L2 DP") and NS Automation brochure.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
