Description

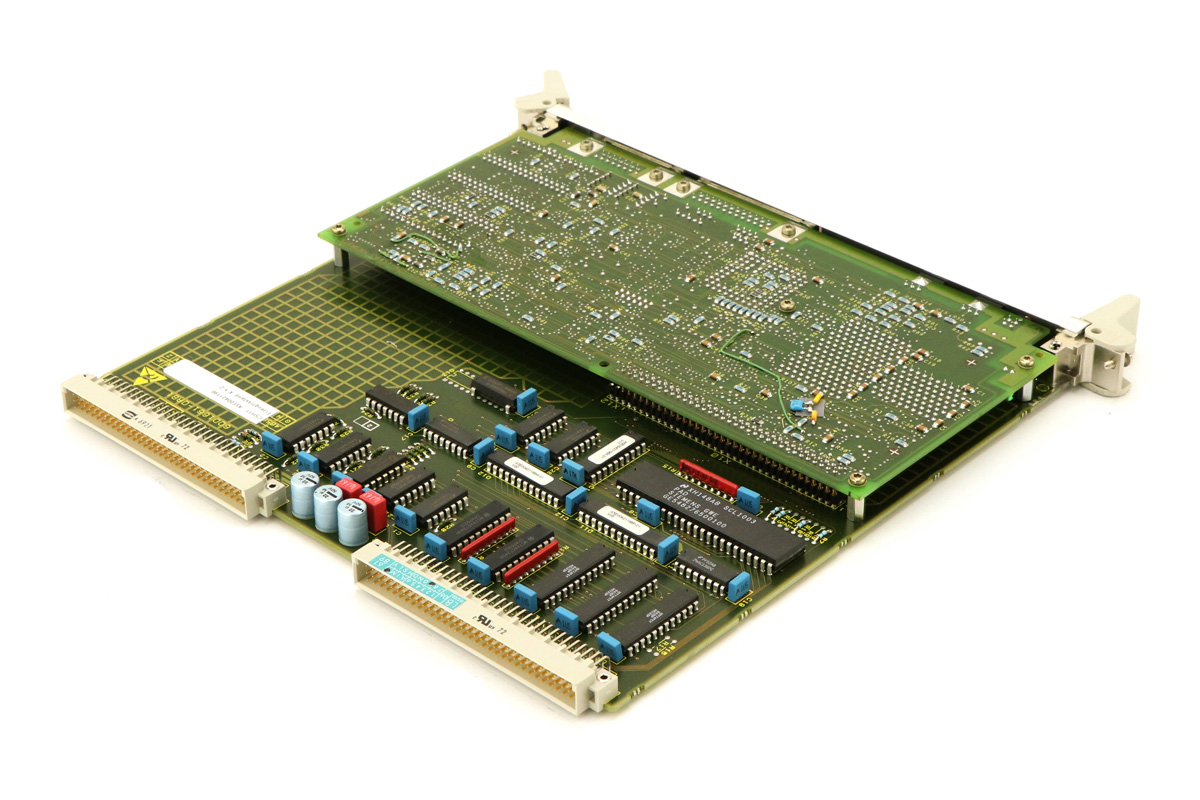

CSH11 — Communication
Siemens (SIMADYN D) · CSH11 · 6DD1661-0AB1
Description
The CSH11 is a communication module for the SIMADYN D system that provides the Ethernet/ISO-TCP link required for SIMADYN D to communicate with SIMATIC S7-400 controllers (e.g., via CP443-1). It is the successor to the legacy CSH1 (6DD1661-0AB0), which only supported S5-to-SIMADYN communication and cannot interface directly with S7-400.
Key specifications
Parameter | Value |
Function | Communication module, SIMADYN D-to-S7-400 Ethernet/ISO-TCP link |
Predecessor | CSH1 (6DD1661-0AB0) — S5-only, incompatible with S7-400 |
Protocol | ISO TCP / TCP, configured via Sinec NML software |
Configuration tools | Sinec NML (module config); Struc/D7-SYS (application telegrams) |
Typical use | Data exchange between SIMADYN D and SIMATIC S7-400 via NetPro-configured connection |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | CSH11 |
Part number | 6DD1661-0AB1 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 6 |
Data confidence | high |
Manuals filed (007 - Manuals)
- 11_Communications Error Handling.PDF — SIMADYN D communications documentation relevant to CSH-series modules
Notes
Function and S7-400 interoperability requirement clearly confirmed via a dedicated technical guide (Industrial Monitor Direct: "S7-400 Simadyn-D Sinec-H1 Communication Setup Guide").
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
