AI 460 — Analog Input
Siemens · AI 460 · 6ES5 760-7LA13
Description

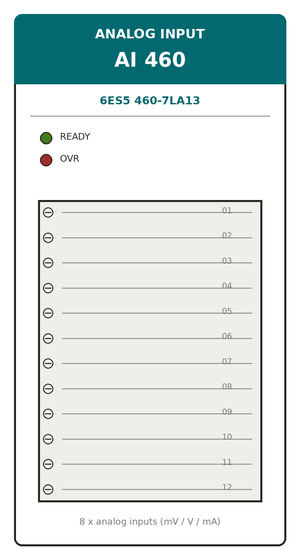

SIMATIC S5 analog input module (AI 460 family, 6ES5 460-7LA13) for the S5-115U/H/F providing 8 isolated analog input channels; separate measuring-range submodules configure the module for the required signal type and span (for example ±50 mV to ±10 V voltage, or 0/4–20 mA current via range modules). It performs multiplexed A/D conversion of process measurements such as level, pressure, and flow. Three analog-input cards are fitted in Rack 07. (The panel labelling references 760; the analog-input inventory part is 6ES5 460-7LA13.)
Key specifications
Parameter | Value |
Function | Analog input / measurement |
Channels | 8 isolated analog input channels |
Signal ranges | Configurable via range submodules (±50 mV–±10 V, 0/4–20 mA) |
Conversion | Multiplexed A/D conversion |
Inventory part | 6ES5 460-7LA13 |
Note | Panel label references 760; analog-input spare part is 460-7LA13 |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | AI 460 |
Part number | 6ES5 760-7LA13 |
Category | Analog I/O |
Installed location | Rack 07 (slots AI#1–AI#3) |
Installed qty (this panel) | 3 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
