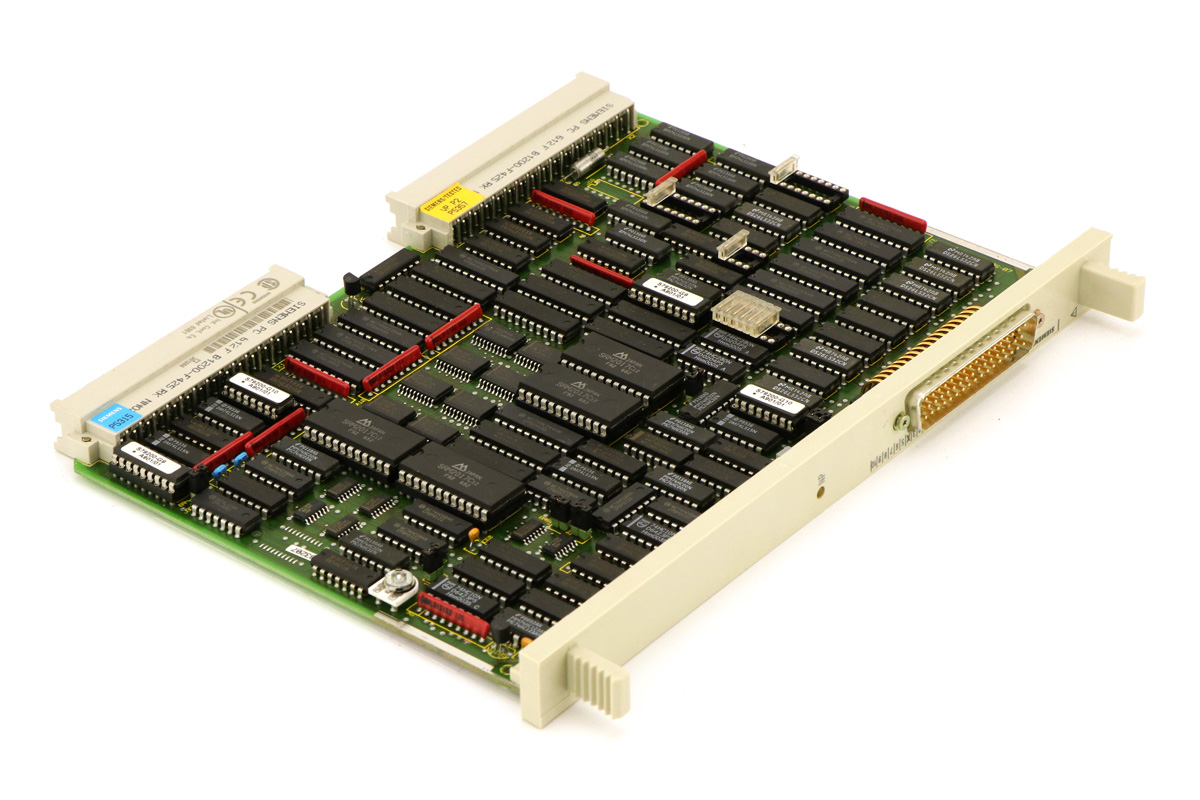

IM 324 — Interface Module
Siemens · IM 324 · 6ES5324-3UA12
Description
The 6ES5324-3UA12 is an interface module in the SIMATIC S5-135U/155U range, used for connections between central and expansion racks or for coordinator/interface functions within the 135U/155U system architecture.
Key specifications
Parameter | Value |
Function | Interface module for S5-135U/155U rack interconnection |
System | SIMATIC S5-135U/155U |
Mounting/Rack | Central or expansion device rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 324 |
Part number | 6ES5324-3UA12 |
Category | Interface Module |
System family | SIMATIC S5-135U/155U |
Stores quantity | 16 |
Data confidence | low |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Part number 6ES5324-3UA12 not directly located in available sources; classified by 3xx interface-module range and 135U/155U family convention per brief's family reference. Verify exact function and specs on nameplate/datasheet.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
