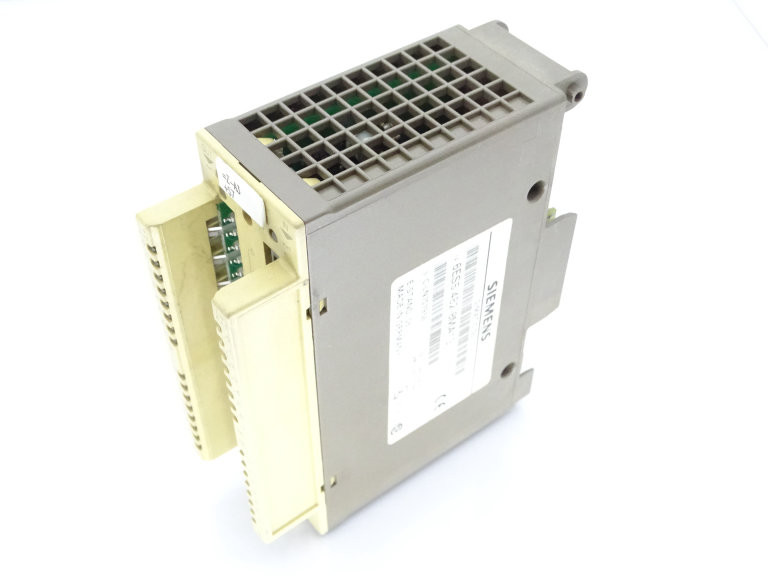

DI/DO 482 — Digital I/O
Siemens · DI/DO 482 · 6ES5482-8MA13
Description
The 482 module is a mixed digital input/output module for the S5-100U I/O system, combining digital inputs and outputs onto a single module. This is the confirmed base part for the 482-series family (see also gt08, likely the same family with a garbled order number).
Key specifications
Parameter | Value |
Function | Combined digital input/output module, S5-100U |
Rated voltage | 24 V DC (typical of S5-100U 4xx digital I/O family) |
Mounting | S5-100U I/O rail-mount module |
Isolation | Optocoupler-isolated inputs, typical of S5-100U 4xx family |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | DI/DO 482 |
Part number | 6ES5482-8MA13 |
Category | Digital I/O |
System family | S5-100U |
GT stores quantity | 39 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual STEP5 S5-100U English.PDF — S5-100U reference manual covering 4xx I/O module family including 482 combined I/O
Notes
Part number pattern consistent with S5-100U 482-series mixed I/O; exact channel count/voltage should be verified against the S5-100U manual's 482 module table or the unit's nameplate.
