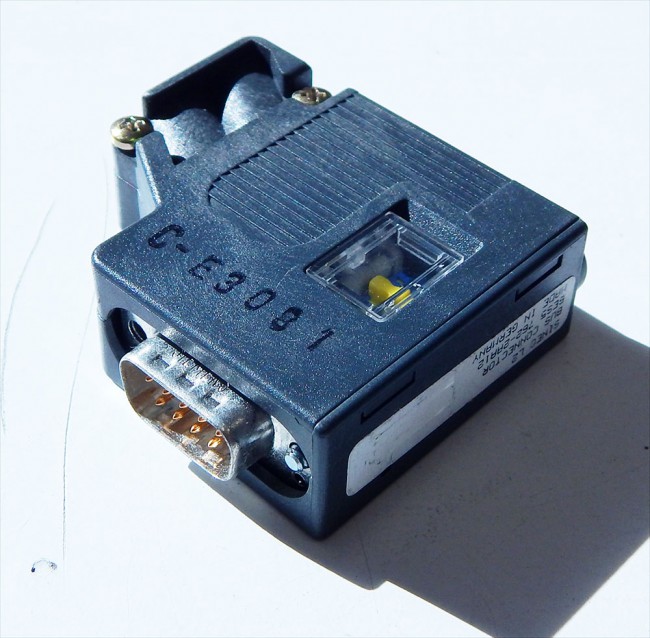

SINEC L2 Bus Connector — Connector
Siemens · SINEC L2 Bus Connector · 6ES5762-2AA21
Description
SIMATIC NET SINEC L2 (PROFIBUS) bus connector, a 9-pin D-sub style connector used to attach a device or node to the SINEC L2/PROFIBUS network cable.
Key specifications
Parameter | Value |
Function | PROFIBUS/SINEC L2 bus connector |
Connector type | 9-pin D-sub style |
Network | SINEC L2 (PROFIBUS DP) |
Termination | Integrated terminating resistor (per family) |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | SINEC L2 Bus Connector |
Part number | 6ES5762-2AA21 |
Category | Connector/Cable |
System family | SIMATIC NET / SINEC |
Stores quantity | 11 |
Data confidence | high |
Manuals filed (007 - Manuals)
- hb89e_cp143_00-07.pdf — CP143 SINEC H1 communication processor manual (English)
- Manual CP1430 English Vol1.pdf — SINEC CP1430/CP143x communication processor manual Vol 1
- SINEC_CP1430TF_Vol.1_e.pdf — SINEC CP1430 TF communication processor manual (English)
Notes
Confirmed via bida-industry.de listing matching exact part number and 'SINEC L2 bus connector' description.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
