DI/DO 482 — Digital Input/Output Module
Siemens · DI/DO 482 · 6ES5482-4UA11
Description

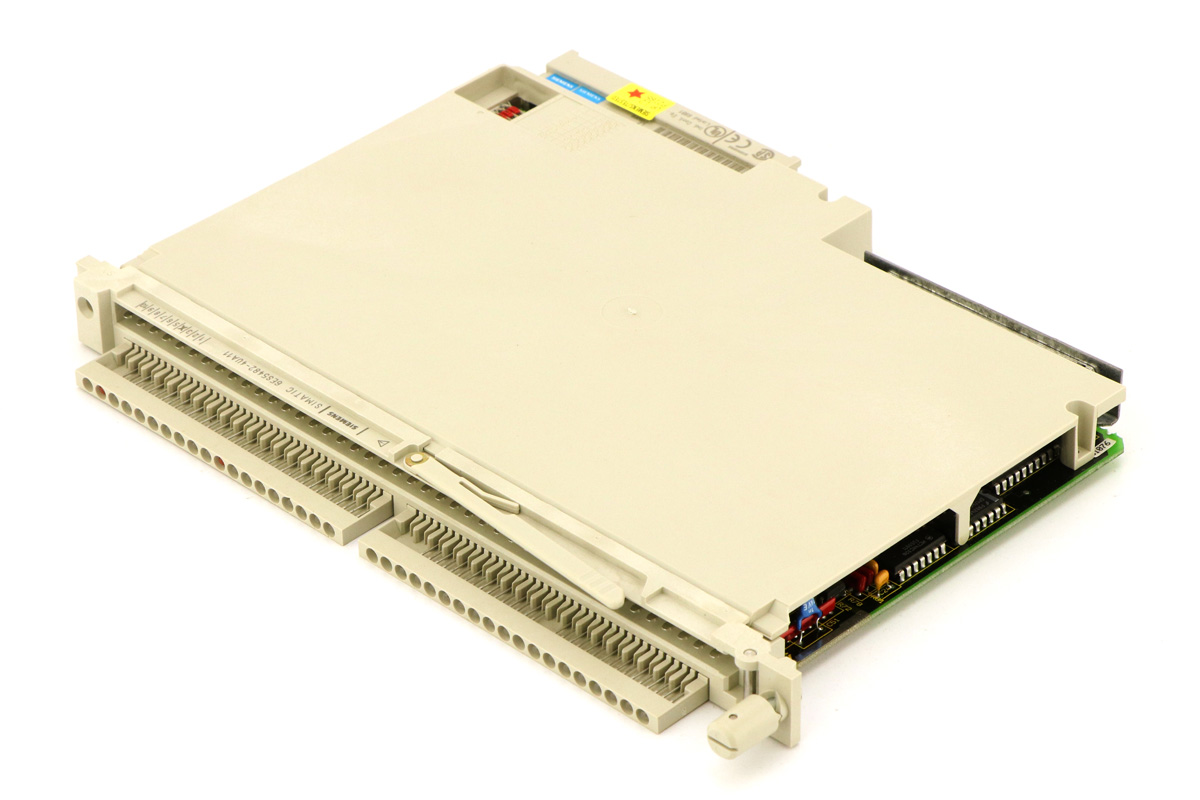

SIMATIC S5 482 digital input/output module, floating, compact 'U' version, providing 16 or 24 digital inputs at 24V DC. Used in S5-135U/155U central controllers and expansion units per the system manual (section 8.4.19).
Key specifications
Parameter | Value |
Function | Combined digital input/output, floating |
Input voltage | 24 V DC |
Inputs/Outputs | 16 or 24 inputs (per family literature; verify nameplate for exact I/O split) |
Mounting/Rack | S5-135U/155U CR/ER rack |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | DI/DO 482 |
Part number | 6ES5482-4UA11 |
Category | Digital I/O |
System family | SIMATIC S5-135U/155U |
Stores quantity | 25 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Documented in S5-135U/155U system manual (adegis.com/archive.org) as section 8.4.19; exact I/O channel split (16 in / vs 24 in) varies by source, verify nameplate.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
