CS12 — Communication
Siemens (SIMADYN D) · CS12 · 6DD1660-0BA0
Description

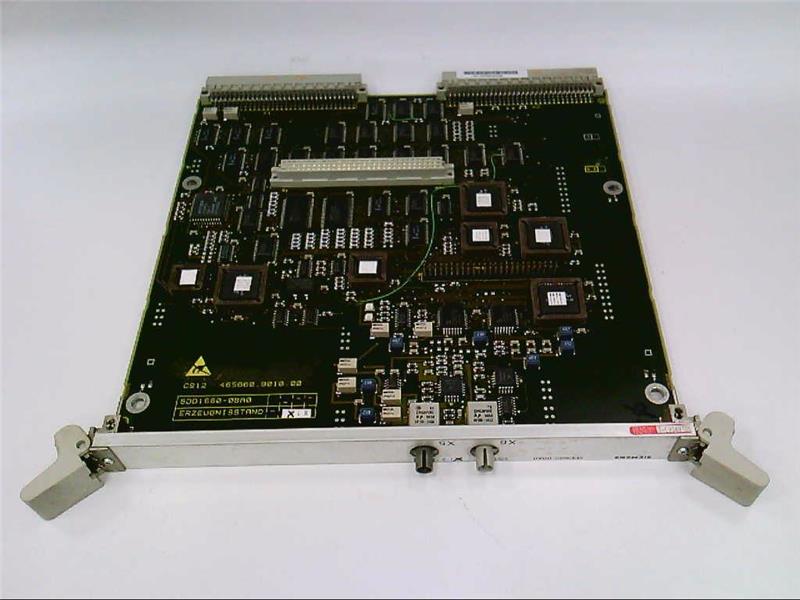

The CS12 is the basic communications board used for fiber-optic rack-to-rack coupling in SIMADYN D systems, providing a shared memory (up to 128 kbyte) accessible by all coupling partners over the C-bus, with arbitration ensuring only one partner accesses the memory at a time. It forms the base board onto which the ICS1 expansion board is mounted to create the CS13 master coupling function (linking up to four CS22 slave boards).
Key specifications
Parameter | Value |
Function | Basic communications board for fiber-optic rack coupling, SIMADYN D |
Memory | Up to 128 kbyte shared memory (extended address range) or 32 kbyte (special peripheral range) |
Bus | C-bus (X1) and L-bus (X2) backplane connections |
Role | Base board for CS13 master coupling (with ICS1 expansion) linking up to 4 CS22 slaves |
Dimensions/weight | 2 slots in subrack; ~0.8 kg |
Current draw | P5, P15 rails, ~100 mA (per SIMADYN D fiber-optic coupling manual) |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | CS12 |
Part number | 6DD1660-0BA0 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 3 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Package-Montage.pdf — SIMADYN D hardware/assembly reference covering module installation
Notes
Detailed specs confirmed via the Siemens "SIMADYN D Digital Control System Fiber-Optic Rack Coupling" manual (archive.org), which describes the CS12 base board memory size, bus connections, and mechanical data in detail.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
