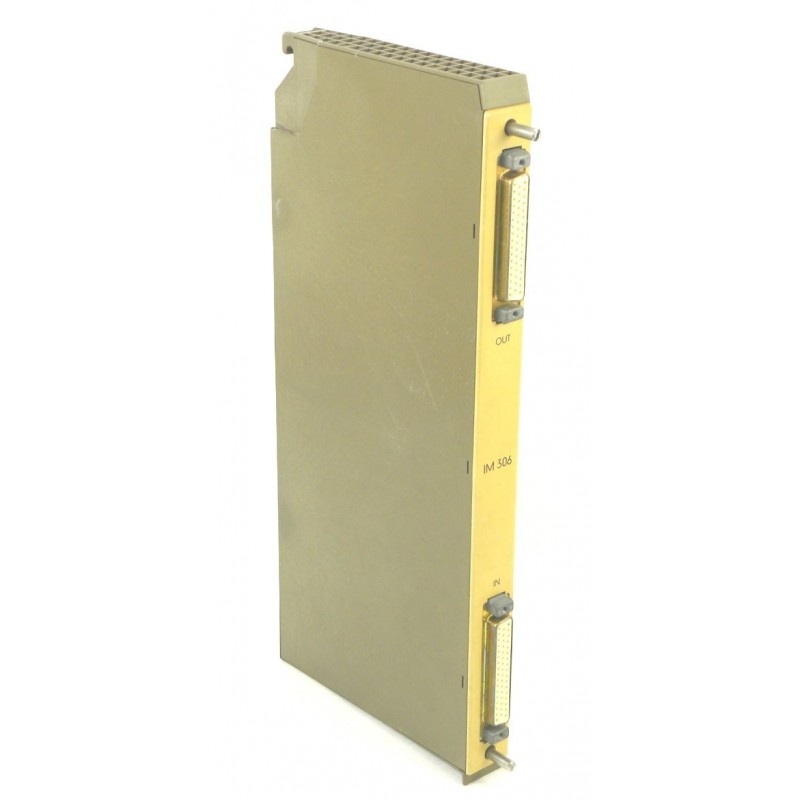

IM 306 — Interface Module
Siemens · IM 306 · 6ES5306-7LA11
Description
The IM 306 (6ES5306-7LA11) is an interface module for the SIMATIC S5-115U programmable controller, used for the centralized connection of expansion units to a central device or another expansion device via the S5 local I/O bus.
Key specifications
Parameter | Value |
Function | Interface module for centralized connection of S5-115U expansion units |
System | SIMATIC S5-115U |
Current consumption | max. 50 mA |
Weight | ~600 g |
Mounting/Rack | Central or expansion device rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 306 |
Part number | 6ES5306-7LA11 |
Category | Interface Module |
System family | SIMATIC S5-115U |
Stores quantity | 31 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Verified via Siemens/ADEGIS datasheet (elettronicalucense.com, adegis.com) confirming IM 306 function, current draw, and weight.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
