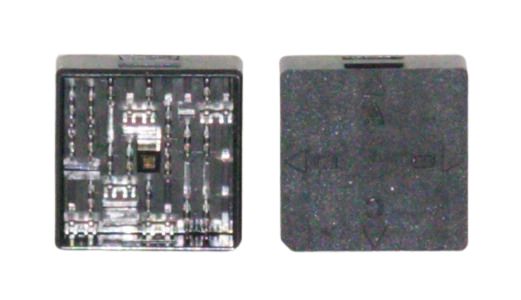

Measuring Range Module — Analog Input Module
Siemens · Measuring Range Module · 6ES7974-0AA00-0AA0
Description
SIMATIC S7-400 measuring range module, a plug-in accessory used to configure the input/measuring range on S7-400 analog input modules.
Key specifications
Parameter | Value |
Function | Plug-in measuring range configuration module |
Compatible system | SIMATIC S7-400 analog input modules |
Application | Sets voltage/current/RTD measuring range on analog channel |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | Measuring Range Module |
Part number | 6ES7974-0AA00-0AA0 |
Category | Analog I/O |
System family | SIMATIC S7-400 |
Stores quantity | 1 |
Data confidence | low |
Manuals filed (007 - Manuals)
- S5_155H_CPU948R_M_Vol.1_E06_99.08_e.pdf — High-availability CPU reference (nearest available H-system manual)
Notes
General S7-400 analog module family and 974-series measuring range module type confirmed conceptually (analogous to S5 498-series range modules), but the specific order number 6ES7974-0AA00-0AA0 was not independently located in vendor/Siemens documentation during this research pass; verify nameplate and exact compatible module.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
