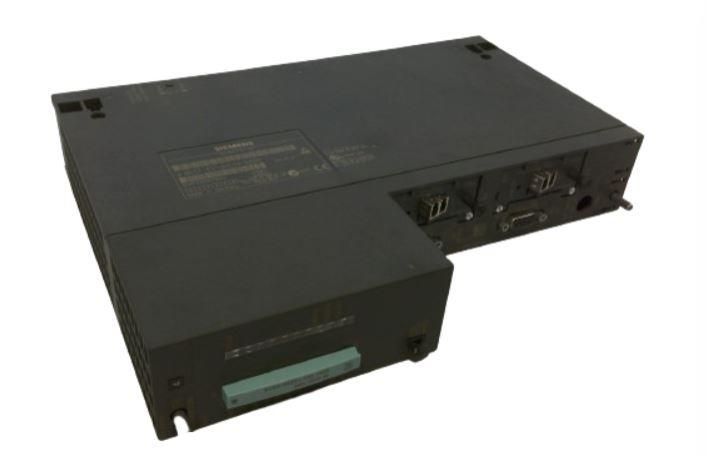

CPU 417-4H — CPU
Siemens · CPU 417-4H · 6ES7417-4HL04-0AB0
Description
SIMATIC S7-400H high-availability CPU 417-4H central processing unit, supporting redundant system operation (S7-400H) with MPI (12 Mbit/s) as the first interface and PROFIBUS DP as the second; expandable via pluggable interface modules.
Key specifications
Parameter | Value |
Function | High-availability (H) central processing unit |
First interface | MPI, 12 Mbit/s |
Second interface | PROFIBUS DP |
Expansion | 3rd/4th interface via pluggable IFM module; up to 6 connectable interface modules |
Dimensions | 50 x 290 x 219 mm, approx. 1070 g |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CPU 417-4H |
Part number | 6ES7417-4HL04-0AB0 |
Category | CPU |
System family | SIMATIC S7-400 |
Stores quantity | 1 |
Data confidence | high |
Manuals filed (007 - Manuals)
- S5_155H_CPU948R_M_Vol.1_E06_99.08_e.pdf — High-availability CPU reference (nearest available H-system manual)
Notes
Confirmed via ADEGIS and REHA-Industriekomponenten datasheets for CPU 417-4H matching order number and interface specifications.
