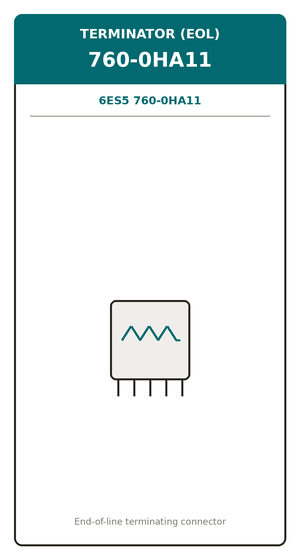

EOL 760-0HA11 — Terminator (End of Line)
Siemens · EOL 760-0HA11 · 6ES5 760-0HA11
Description
SIMATIC S5 760 series terminating / end-of-line element used to correctly terminate the S5 expansion (I/O) bus at the last subrack in a chain, preventing signal reflections and ensuring bus integrity across the IM 304/314 extended configuration. It is a passive terminator fitted at the bus ends. Four units are held for the multi-rack bus arrangement of the panel.
Key specifications
Parameter | Value |
Function | End-of-line bus terminator |
Series | SIMATIC S5 760 series |
Role | Terminates the S5 expansion (I/O) bus at last subrack |
Benefit | Prevents signal reflections; ensures bus integrity |
Type | Passive terminating element |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | EOL 760-0HA11 |
Part number | 6ES5 760-0HA11 |
Category | Cables & Accessories |
Installed location | Bus end of last subrack |
Installed qty (this panel) | 4 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
