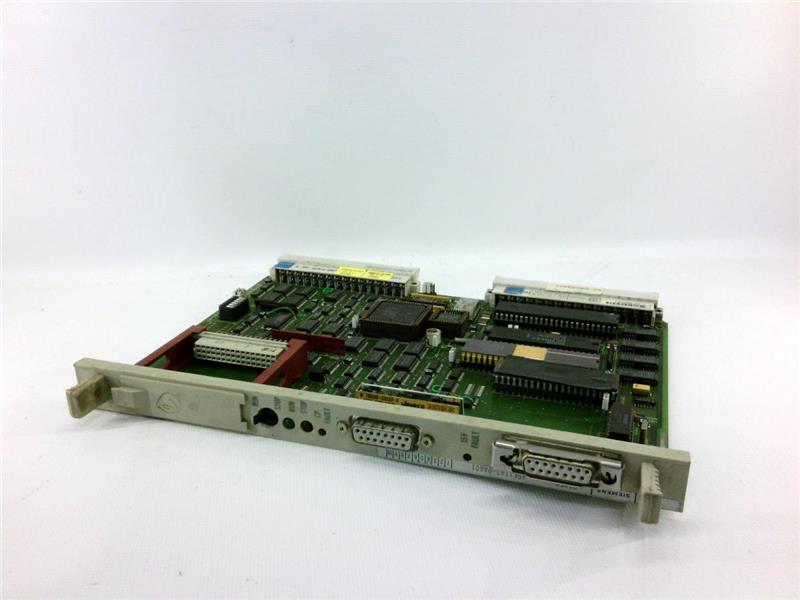

CP 143 TF — Communication Processor
Siemens · CP 143 TF · 6GK1143-0AA01
Description
SIMATIC NET SINEC H1 CP143 TF communications processor interface module, used to connect a SIMATIC S5 PLC to Industrial Ethernet using the AP/TF protocol. Supplied without the 15V voltage module (spare-part only version).
Key specifications
Parameter | Value |
Function | SINEC H1 (Industrial Ethernet) communications processor |
Protocol | AP/TF |
Memory | 512 KB DRAM |
Compatible controller | SIMATIC S5 |
Dimensions | Front panel 20.3mm width, PCB 160 x 233.4mm, approx. 500g |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CP 143 TF |
Part number | 6GK1143-0AA01 |
Category | Communication Processor |
System family | SIMATIC NET / SINEC |
Stores quantity | 29 |
Data confidence | high |
Manuals filed (007 - Manuals)
- hb89e_cp143_00-07.pdf — CP143 SINEC H1 communication processor manual (English)
- Manual CP1430 English Vol1.pdf — SINEC CP1430/CP143x communication processor manual Vol 1
- SINEC_CP1430TF_Vol.1_e.pdf — SINEC CP1430 TF communication processor manual (English)
Notes
Confirmed via ADEGIS and automatyka24.pl datasheets matching exact order number, protocol, and memory specification.
Source: Spare Parts List for Sales V7 (Bohemia Market / BM Global stores inventory). Filed in the AI HW Knowledge Base.
