CP 5430 TF — Communication Processor
Siemens · CP 5430 TF · 6GK1543-0AA02
Description

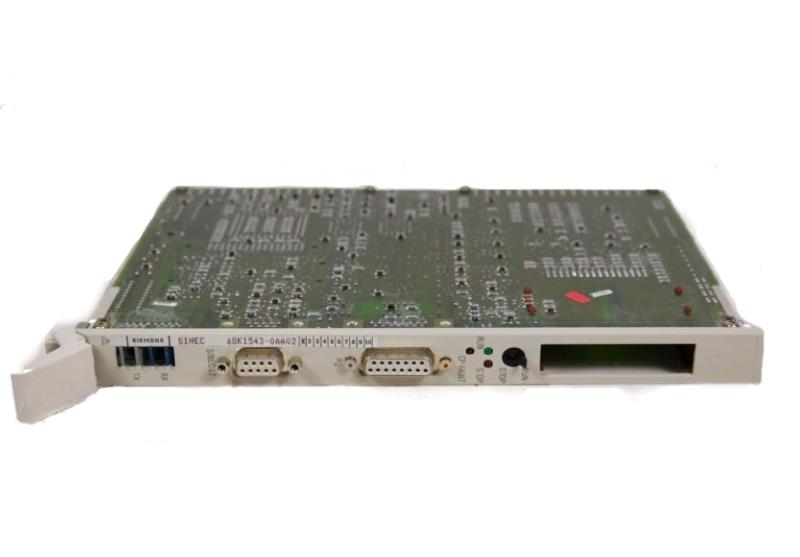

SIMATIC NET SINEC CP 5430 TF communications processor card (revised suffix), connecting a SIMATIC S5 PLC to the SINEC L2/PROFIBUS local area network, functionally equivalent to the -0AA01 variant with a hardware/firmware revision.
Key specifications
Parameter | Value |
Function | SINEC L2/PROFIBUS communications processor |
Standard | PROFIBUS DIN 19245 Part 1 |
Compatible controllers | S5-115U/H, S5-135U, S5-155U/H |
Network | SINEC L2 / L2FO |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CP 5430 TF |
Part number | 6GK1543-0AA02 |
Category | Communication Processor |
System family | SIMATIC NET / SINEC |
Stores quantity | 14 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- hb89e_cp143_00-07.pdf — CP143 SINEC H1 communication processor manual (English)
- Manual CP1430 English Vol1.pdf — SINEC CP1430/CP143x communication processor manual Vol 1
- SINEC_CP1430TF_Vol.1_e.pdf — SINEC CP1430 TF communication processor manual (English)
Notes
Confirmed as CP5430 TF SINEC L2 interface family via Polrad listing (6GK1543-0AA02 'interface SINEC L2 CP 5430 TF'); this is a revision/suffix variant of spl86, exact differences from -0AA01 not detailed in sources found.
