Power Supply — PS 951
Manufacturer: Siemens · Model: PS 951 · Part No.: 6ES5 951-7LD21 Category: Power Supply · System: SIMATIC S5-115U / S5-115H
Description

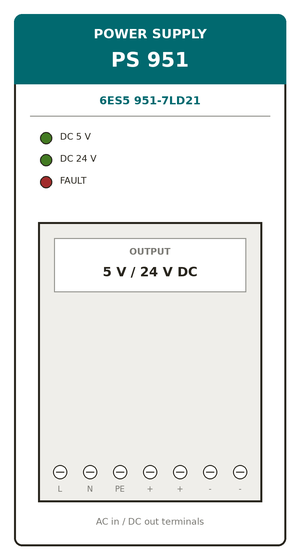

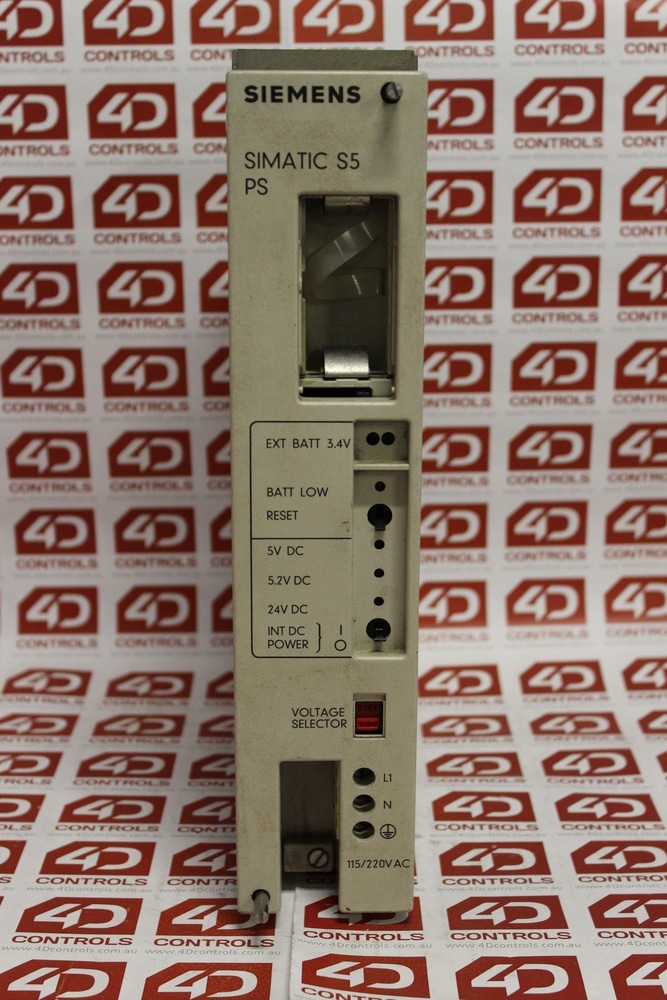

SIMATIC S5 PS 951 power supply module for the S5-115U/H central controller and expansion racks, supplied without an integral backup battery (an external +3.4–9 V backup input is provided). It accepts a wide-range line input of 120/230 V AC and delivers a regulated +5 V DC ±1.5% logic-bus voltage rated 7 A without a fan and 15 A with a fan subassembly, plus auxiliary +5.2 V (2.5 A) for programmers and +24 V (0.35 A) for communication processors. It features electronic short-circuit protection and 20 ms mains buffering. One PS 951 is typically fitted in every rack of an S5 controller (for example, Racks 01–07 of the Seawater Screen Control Panel).
Key Specifications
Parameter | Value |
Function | Regulated logic power supply for S5-115U/H rack |
Input voltage | 120 / 230 V AC (187–264 V / 94–132 V, 47–63 Hz) |
Output (logic bus) | +5 V DC ±1.5% — 7 A (no fan) / 15 A (with fan) |
Auxiliary outputs | +5.2 V (2.5 A) for PG; +24 V (0.35 A) for CPs |
Backup | No integral battery; external +3.4–9 V backup input |
Protection / buffering | Electronic short-circuit protection; 20 ms mains buffering |
Weight | ≈ 1.9 kg |
Notes
- Part number as marked / ordered: 6ES5 951-7LD21.
- Related documents live in this component's subfolders: photos and schematics in 010 - Photos, manuals and datasheets in 007 - Manuals, and quotes / notes / project references in 005 - Materials.
