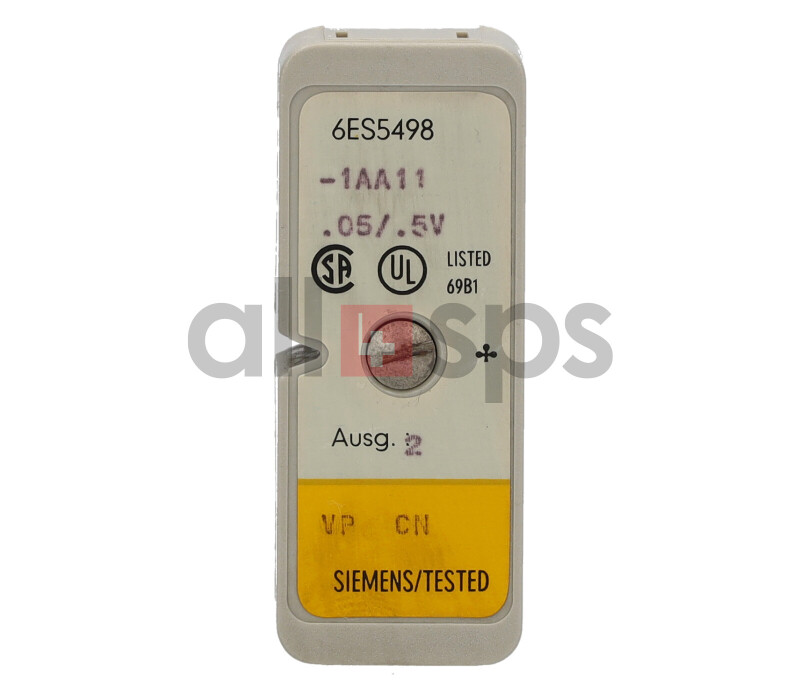

Measuring Range Module 498 — Analog Input Module
Siemens · Measuring Range Module 498 · 6ES5498-1AA11
Description
SIMATIC S5 498 measuring-range module (Messbereichsmodul) used to configure the input range on 460/465 analog input modules. Supports ±12.5 mV, ±50 mV, ±500 mV, or Pt100 ranges.
Key specifications
Parameter | Value |
Function | Plug-in measuring range selector for analog input modules |
Selectable ranges | ±12.5 mV / ±50 mV / ±500 mV / Pt100 |
Compatible modules | 6ES5460/465-series analog input modules |
Mounting/Rack | Plugs into analog input module carrier |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | Measuring Range Module 498 |
Part number | 6ES5498-1AA11 |
Category | Analog I/O |
System family | SIMATIC S5-135U/155U |
Stores quantity | 1 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Confirmed via wie-tec.de listing and Siemens analog module family documentation (measuring range card 498 series).
