Description
CPU 942 — CPU
Siemens · CPU 942 · 6ES5 942-7UH11
Description

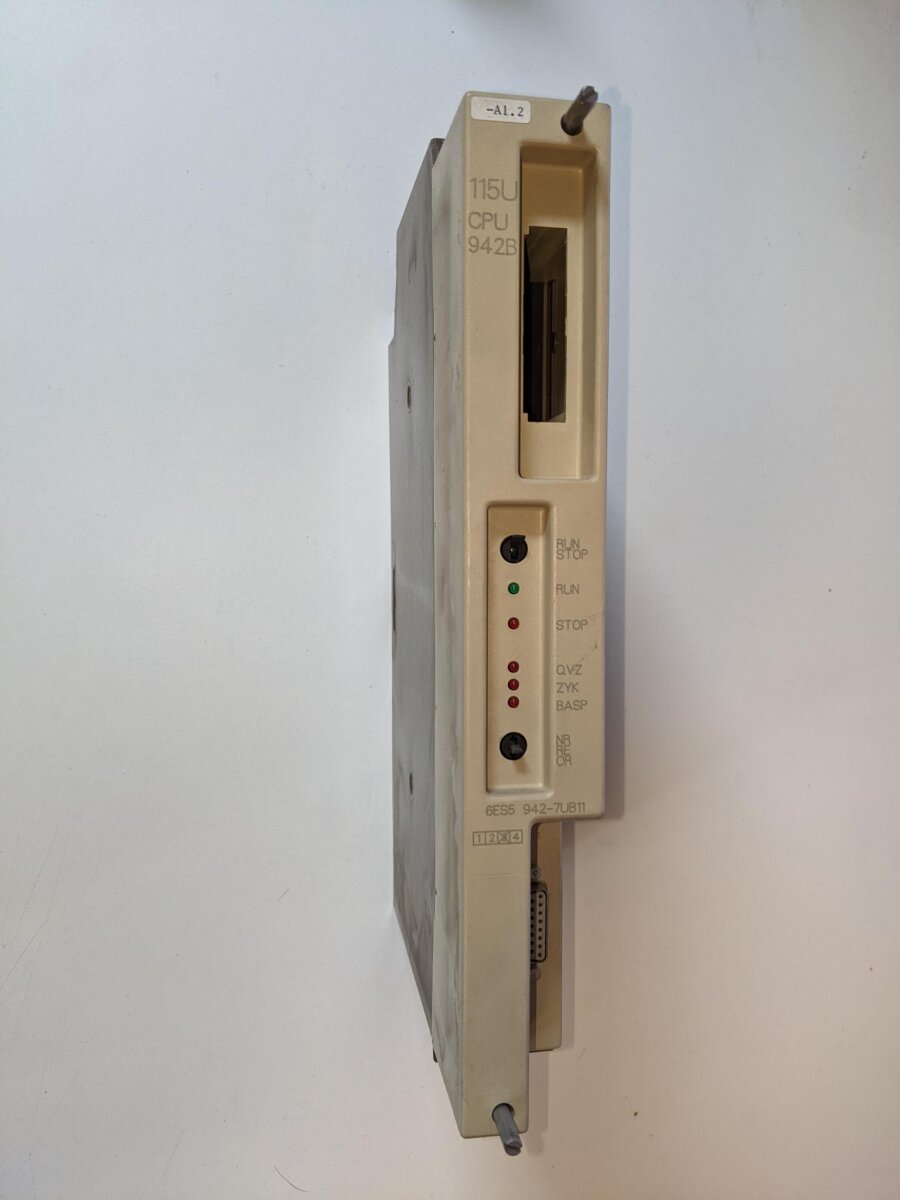

SIMATIC S5-115U CPU 942 central processing unit, built on a 16-bit processor operating from the internal 24 V DC / 5 V logic supply. It executes the STEP 5 instruction set (binary, digital, and floating-point operations) with integral RAM/EPROM program memory and a serial programmer (PG) interface. The 942 is a mid-range 115U processor supporting both centralized and distributed I/O configurations with up to three expansion units. In this panel it is deployed in Racks 01 and 02 as the paired control processors of the Seawater Screen Control system.
Key specifications
Parameter | Value |
Function | Central processing unit for S5-115U |
Processor | 16-bit |
Supply | Internal 24 V DC / 5 V logic |
Instruction set | STEP 5 (binary, digital, floating-point) |
Memory | Integral RAM/EPROM program memory |

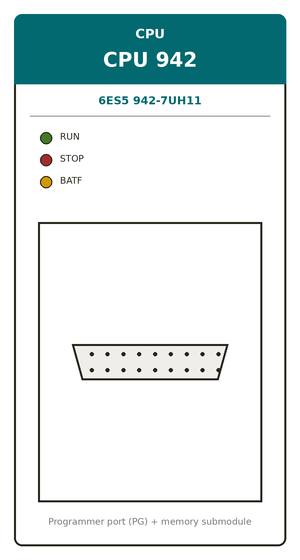

Interface | Serial programmer (PG) interface |
Configuration | Centralized & distributed I/O; up to 3 expansion units |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CPU 942 |
Part number | 6ES5 942-7UH11 |
Category | Processor |
Installed location | Racks 01 & 02 |
Installed qty (this panel) | 2 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
