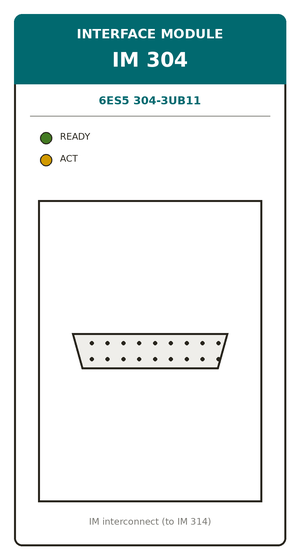

IM 304 — Interface Module (COM)
Siemens · IM 304 · 6ES5 304-3UB11
Description

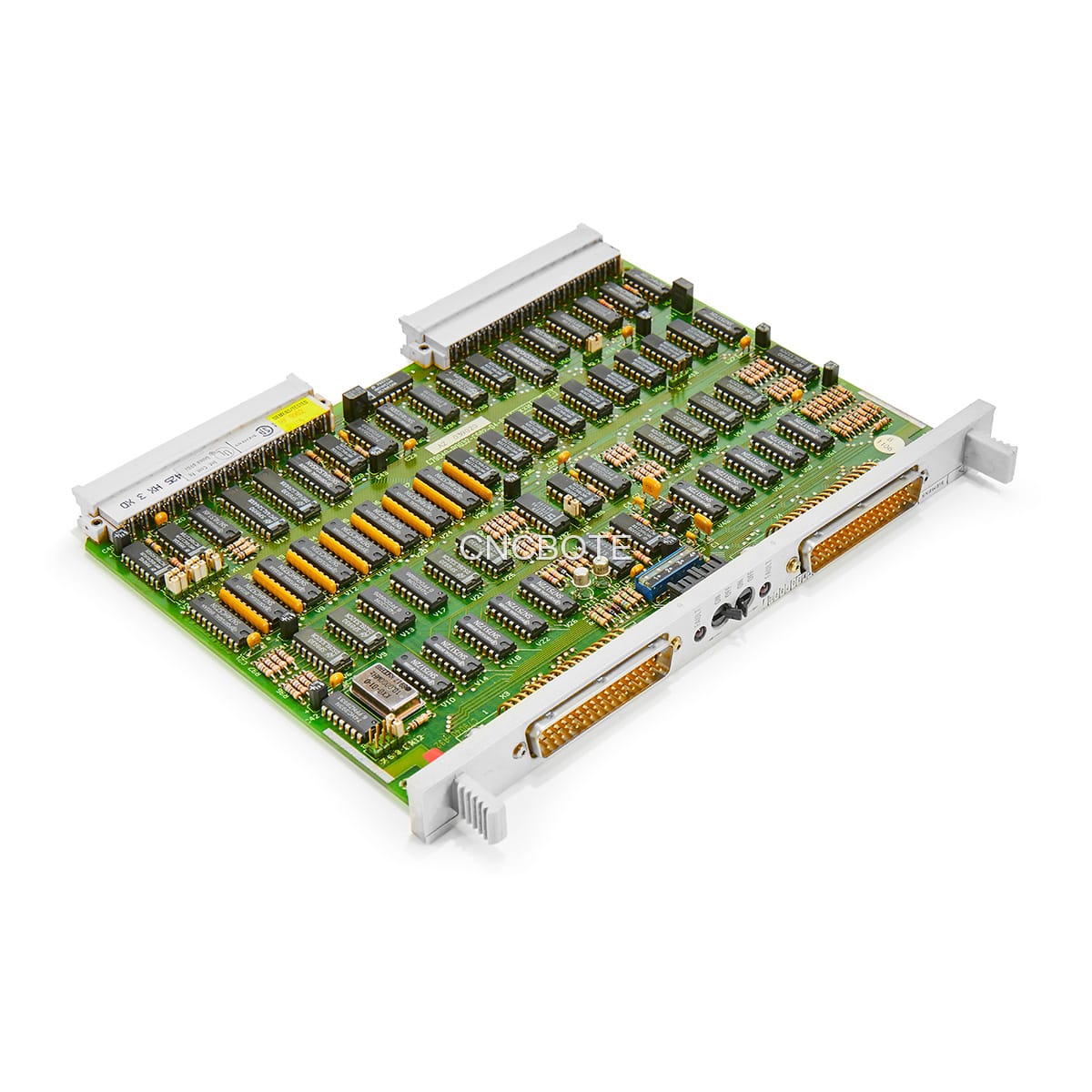

SIMATIC S5 IM 304 interface module (central-controller / expansion-unit link) used for distributed configuration of up to 600 m, connecting expansion units to a central controller and interfacing the central controllers of the S5-150H, -155H, -115H and -115F. It forms the IM 304 / IM 314 sender-receiver pair that extends the S5 backplane bus between subracks. In this cabinet it provides the rack-to-rack communication links, fitted as the two right-hand COM slots in Racks 03–07.
Key specifications
Parameter | Value |
Function | CC–EU interface for distributed configuration |
Type | IM 304 sender/receiver (pairs with IM 314) |
Max distance | Up to 600 m |
Compatible systems | S5-150H, -155H, -115H, -115F |
Role in panel | Rack-to-rack backplane bus extension |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 304 |
Part number | 6ES5 304-3UB11 |
Category | Communication / Interface |
Installed location | Right-hand COM slots, Racks 03–07 |
Installed qty (this panel) | 12 |
Source panel: Seawater Screen Control Panel (tag 10GAA00GH001), Siemens SIMATIC S5. Filed in the AI HW Knowledge Base.
