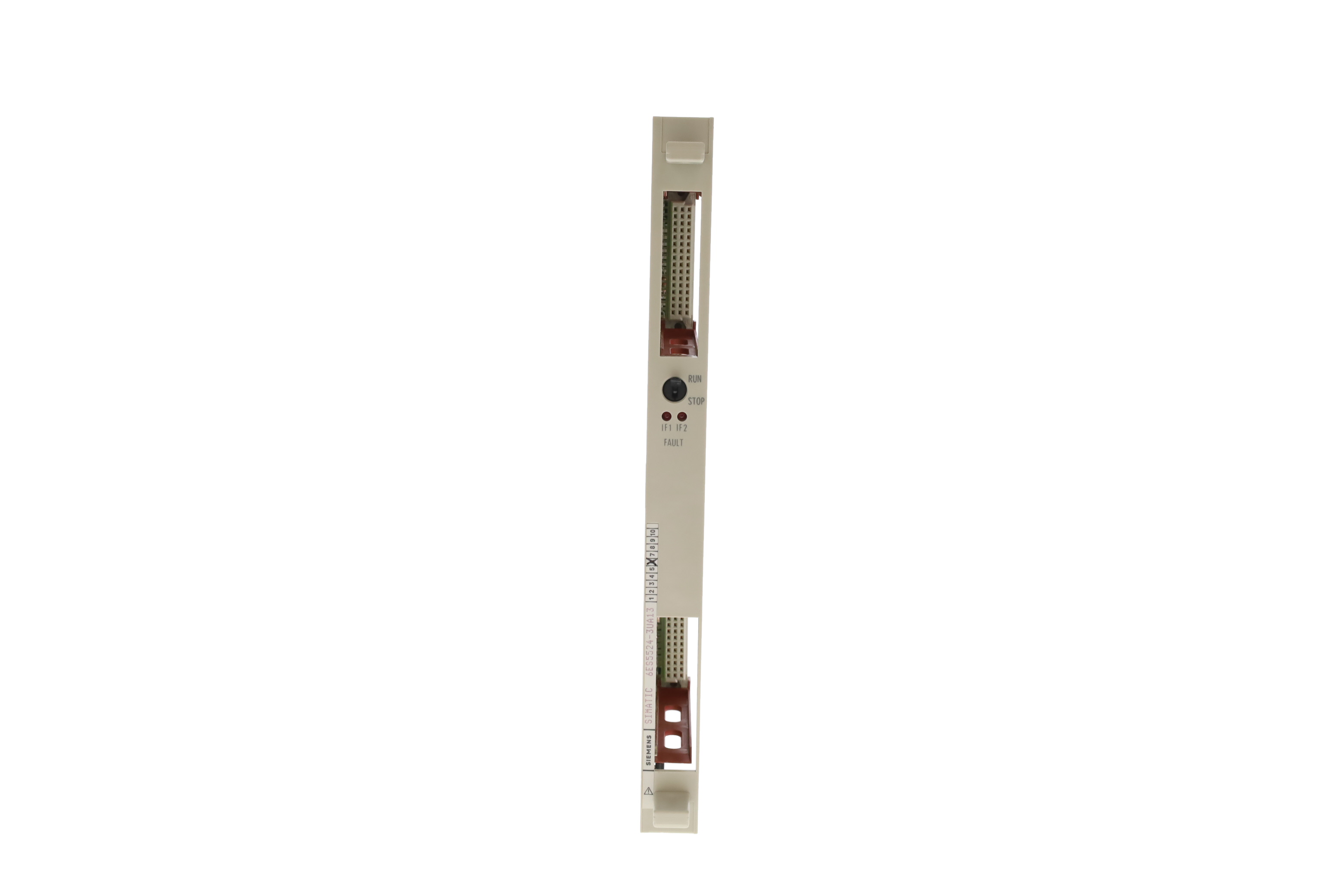

CP 524 — Communication Processor
Siemens · CP 524 · 6ES5524-3UA13
Description
SIMATIC S5 CP 524 communication processor for the S5-115U PLC, providing serial point-to-point communication for data exchange with minicomputers, printers, or other serial devices.
Key specifications
Parameter | Value |
Function | Serial communication processor (point-to-point) |
Compatible controller | S5-115U |
Interface | Serial (RS232/20mA current loop, per family) |
Mounting/Rack | S5-115U CR rack slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CP 524 |
Part number | 6ES5524-3UA13 |
Category | Communication Processor |
System family | SIMATIC S5-115U |
Stores quantity | 1 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Confirmed as CP524 comm processor for S5-115U via JC-Electronics listing; detailed protocol/baud-rate specs not independently verified for this exact suffix, verify nameplate.
