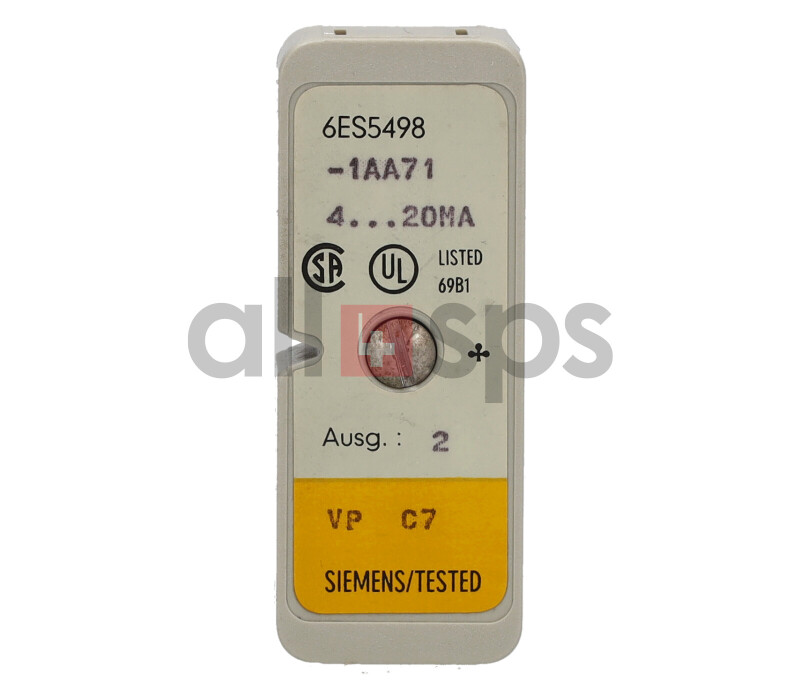

Measuring Range Module 498 — Analog Input Module
Siemens · Measuring Range Module 498 · 6ES5498-1AA71
Description
SIMATIC S5 498 measuring-range module used to configure the analog input module for a 4-20 mA two-wire transducer signal range.
Key specifications
Parameter | Value |
Function | Plug-in measuring range selector, 4-20 mA 2-wire transducer |
Selectable range | +4...+20 mA (2-wire transducer) |
Compatible modules | 6ES5460/465-series analog input modules |
Mounting/Rack | Plugs into analog input module carrier |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | Measuring Range Module 498 |
Part number | 6ES5498-1AA71 |
Category | Analog I/O |
System family | SIMATIC S5-135U/155U |
Stores quantity | 8 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Manual CP1430 English Vol1.pdf — S5-115U system reference (CP/comms volume)
- 02 - CPU948 Programming Manual.pdf — S5 CPU programming reference (115U/155H family)
Notes
Family-typical spec inferred from 498 measuring range module series (e.g. 6ES5498-1AA51 documented as 4-20mA 2-wire); exact -1AA71 suffix datasheet not independently located, verify nameplate.
