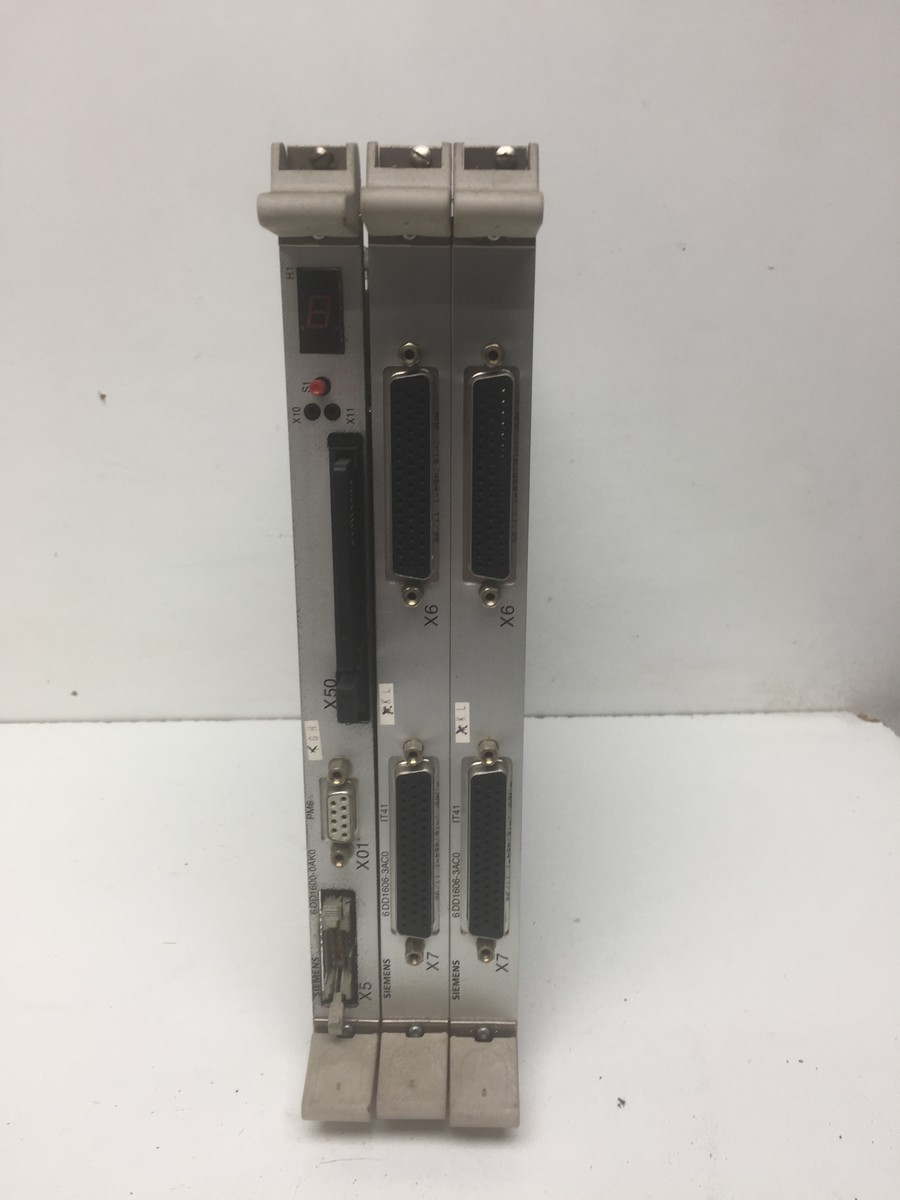

PM6 processor — Processor
Siemens (SIMADYN D) · PM6 processor · 6DD1600-0AK0
Description
The PM6 is a high-performance 64-bit RISC CPU module for the SIMADYN D modular control system, used for demanding closed-loop and open-loop control tasks (e.g., turbine/generator control) requiring cycle times around 0.5 ms. It requires a forced-ventilation subrack and includes onboard digital inputs plus L-bus and C-bus backplane connections.
Key specifications
Parameter | Value |
Function | 64-bit RISC CPU module for SIMADYN D control system |
Clock | 32 MHz local I/O bus / 64 MHz DRAM access / 128 MHz internal cache (per Siemens PM6 datasheet) |
Memory | 256 kbyte SRAM program/data + 8 Mbyte DRAM; supports MS5/MS51/MS52 flash program memory submodules |
Digital inputs | 8 onboard |
Bus | L bus and C bus backplane |
Current draw | +5 V/1.7 A; +15 V/50 mA; -15 V/30 mA (per Siemens/reseller datasheet) |
Dimensions/weight | 1 slot (20.32 mm) width; ~0.6 kg |
Cycle time | Typical control-loop cycle time ~0.5 ms |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | PM6 processor |
Part number | 6DD1600-0AK0 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 6 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Package-Montage.pdf — SIMADYN D hardware/assembly reference covering module installation
- 1_IBS.PDF — SIMADYN D commissioning documentation (system-level, not PM6-specific datasheet)
Notes
Detailed specs confirmed from Siemens SIMADYN D brochure and reseller technical data (NS Automation, Adegis). Drive manuals available are system-level service/commissioning PDFs, not a per-module PM6 datasheet, so manual match confidence is lower than the spec confidence.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
