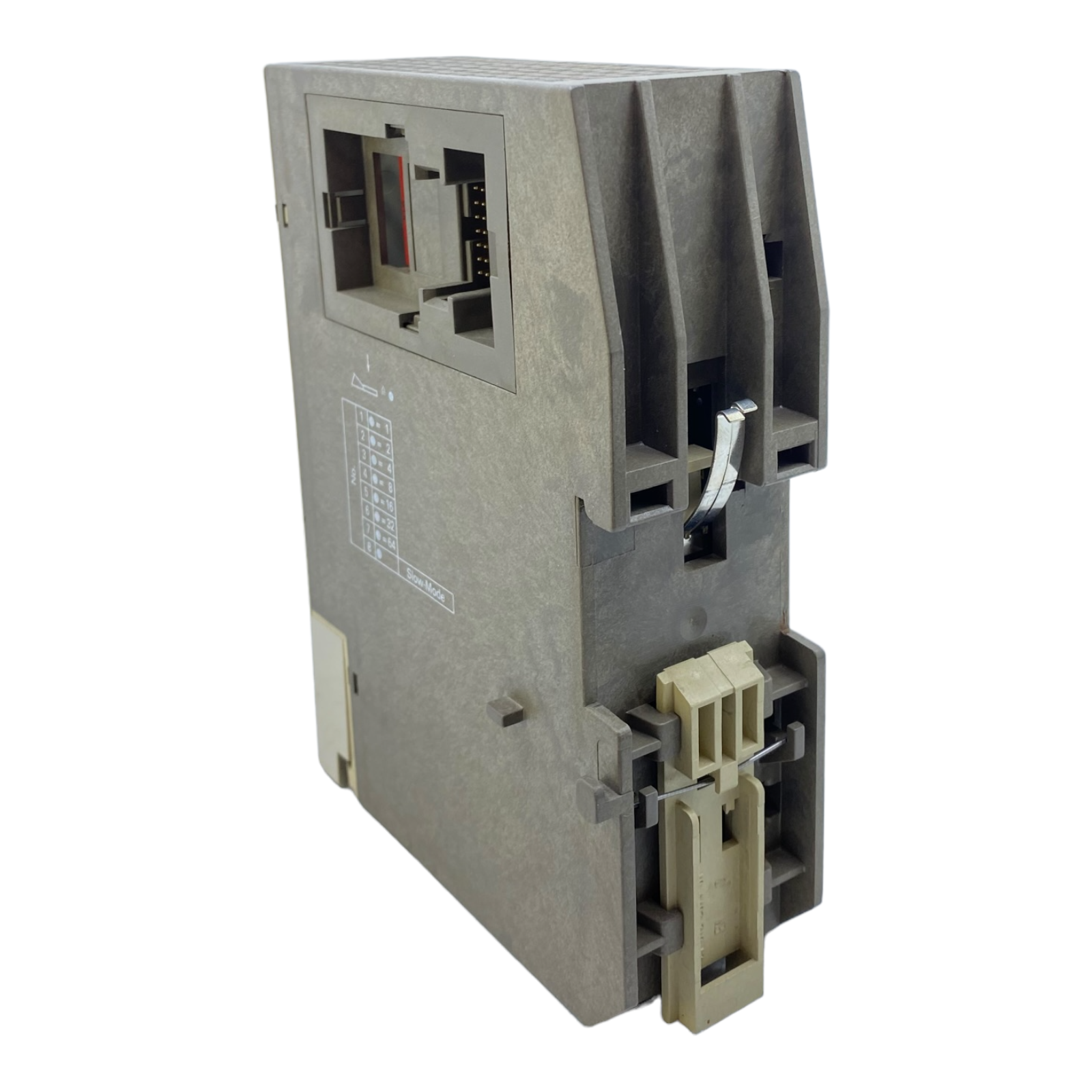

IM 318-B — Interface Module
Siemens · IM 318-B · 6ES5318-8MB11
Description
The IM 318-B (6ES5318-8MB11) is a slave interface module for the ET 200U distributed I/O station, integrating a SINEC L2-DP (Siemens protocol) interface. It is operated in conjunction with COM ET 200 configuration software and an IM 308-B master interface.
Key specifications
Parameter | Value |
Function | Slave interface module for ET 200U distributed I/O, SINEC L2-DP |
System | SIMATIC S5 ET 200U (used with S5-115U/135U/155U via IM 308-B master) |
Protocol | SINEC L2-DP (Siemens protocol); functionality subset of 318-8MB12 |
Compatible master | IM 308-B (from revision level 1), COM ET 200 (from v1.0) |
Mounting/Rack | ET 200U station slave slot |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | IM 318-B |
Part number | 6ES5318-8MB11 |
Category | Interface Module |
System family | SIMATIC S5 ET200U |
Stores quantity | 1 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Manual STEP5 S5-100U English.PDF — S5-100U system manual (English) covering CPU/IO/memory for the 100U programmable controller
Notes
Verified via Siemens/ADEGIS ET 200U Distributed I/O Station manual describing IM 318-B order numbers 6ES5318-8MB11/-8MB12/-8MC11.
