Front Connector (20-pin) — Connector

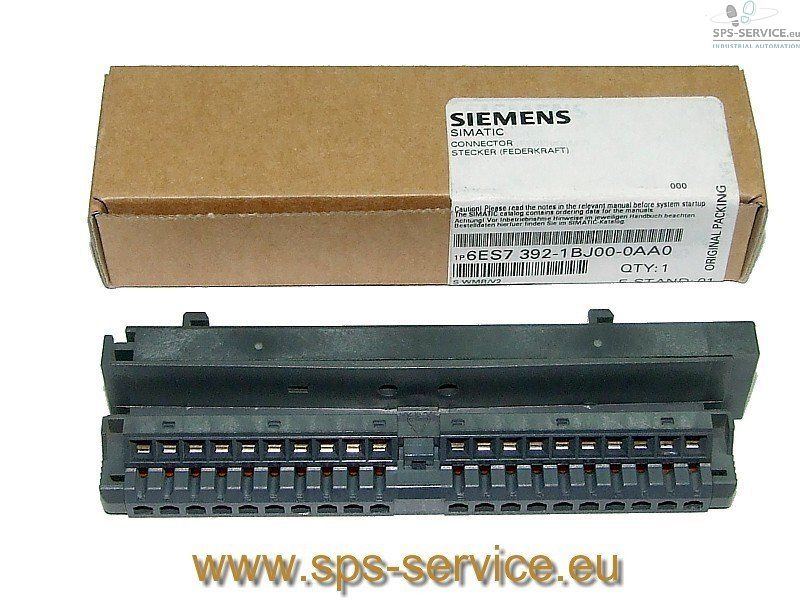

Siemens · Front Connector (20-pin) · 6ES7392-1BJ00-0AA0
Description
SIMATIC S7-300 front connector, 20-pin, with spring (cage-clamp) contacts, used to terminate field wiring on 20-pin S7-300 signal modules (digital/analog I/O).
Key specifications
Parameter | Value |
Function | Front connector, spring/cage-clamp terminals |
Pin count | 20-pin |
Compatible system | SIMATIC S7-300 signal modules (not compatible with S7-400/1200/1500/ET200) |
Wire capacity | Up to 1.5 mm² per terminal (1-2 wires) |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | Front Connector (20-pin) |
Part number | 6ES7392-1BJ00-0AA0 |
Category | Connector/Cable |
System family | SIMATIC S7-300 |
Stores quantity | 2 |
Data confidence | high |
Manuals filed (007 - Manuals)
- S7-300_Installation Handbook.pdf — S7-300 installation handbook
- S7300_gscollection_e.pdf — S7-300 getting-started collection (English)
Notes
Confirmed via multiple vendor datasheets (Konmask, RELEPRO, Promelectrica) matching exact order number and function.
