Description

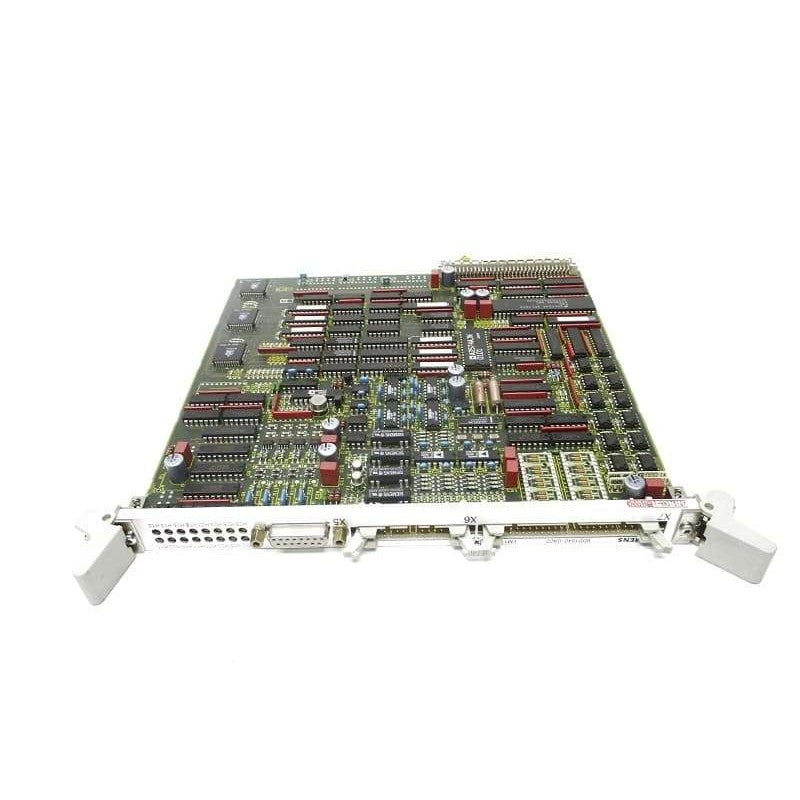

EM11 expansion memory — Analog/Digital I/O
Siemens (SIMADYN D) · EM11 expansion memory · 6DD1640-0AC0
Description
The EM11 is an input/output expansion module for SIMADYN D (16-bit), providing a mix of digital and analog channels directly on the L/C bus: 8 binary outputs, 4 analog inputs, 4 interrupt-capable analog inputs, and 2 analog outputs with pulse-sensing capability. Despite the inventory label "expansion memory," it is an I/O module, not a memory-expansion card.
Key specifications
Parameter | Value |
Function | Mixed digital/analog I/O module for SIMADYN D (16-bit) |
Digital outputs | 8 binary outputs (BO) |
Analog inputs | 4 AI + 4 AI (interrupt-capable) |
Analog outputs | 2 AO, with pulse sensing |
Bus | SIMADYN D L-bus/C-bus |
Note on labeling | Inventory desc "EM11 expansion memory" is inaccurate — EM11 is an I/O module, not memory |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | EM11 expansion memory |
Part number | 6DD1640-0AC0 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 6 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- Package-Montage.pdf — SIMADYN D hardware/assembly reference covering module installation
Notes
Function and channel counts confirmed via reseller technical listings (Southernplcs, Aotewell, Cofiem) citing Siemens SIMADYN D catalog data. No EM11-specific Siemens datasheet PDF located; Drive match is a general hardware/assembly document only.
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
