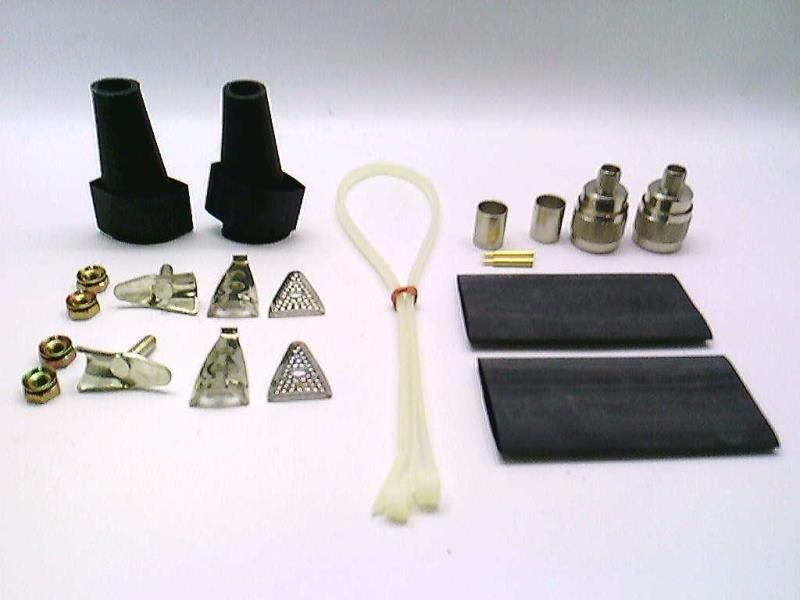

SINEC H1 Coaxial Connector — Connector
Siemens · SINEC H1 Coaxial Connector · 6ES5755-4AA11
Description
SIMATIC NET SINEC H1 coaxial bus connector, used to terminate or tap into the SINEC H1 (Industrial Ethernet) coaxial/triaxial bus cable at a node.
Key specifications
Parameter | Value |
Function | SINEC H1 coaxial bus connector/tap |
Network | SINEC H1 (Industrial Ethernet) |
Application | Node connection to H1 bus cable |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | SINEC H1 Coaxial Connector |
Part number | 6ES5755-4AA11 |
Category | Connector/Cable |
System family | SIMATIC NET / SINEC |
Stores quantity | 3 |
Data confidence | medium |
Manuals filed (007 - Manuals)
- hb89e_cp143_00-07.pdf — CP143 SINEC H1 communication processor manual (English)
- Manual CP1430 English Vol1.pdf — SINEC CP1430/CP143x communication processor manual Vol 1
- SINEC_CP1430TF_Vol.1_e.pdf — SINEC CP1430 TF communication processor manual (English)
Notes
Family confirmed as SINEC H1 network accessory per description; exact datasheet for -4AA11 suffix not independently located, verify nameplate for coax type/impedance.
