Description

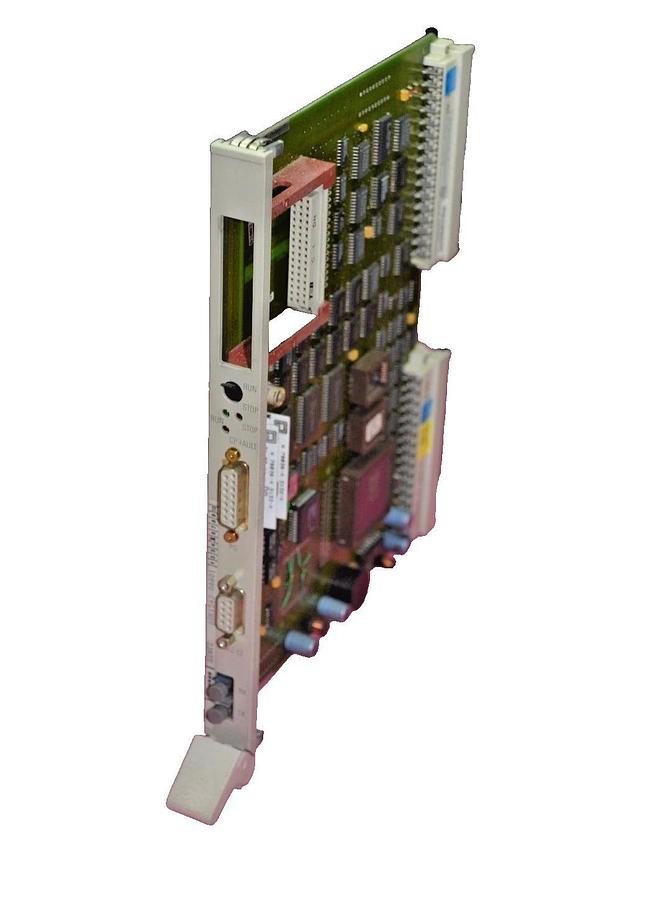

CP 5430 TF — Communication Processor
Siemens · CP 5430 TF · 6GK1543-0AA01
Description
SIMATIC NET SINEC CP 5430 TF communications processor for connecting a SIMATIC S5 PLC (115U/H, 135U, 155U/H) to the SINEC L2/L2FO local area network, compliant with the PROFIBUS standard (DIN 19245 Part 1).
Key specifications
Parameter | Value |
Function | SINEC L2/PROFIBUS communications processor |
Standard | PROFIBUS DIN 19245 Part 1 |
Compatible controllers | S5-115U/H, S5-135U, S5-155U/H |
Network | SINEC L2 / L2FO |
Reference
Field | Value |
Manufacturer (OEM) | Siemens |
Model | CP 5430 TF |
Part number | 6GK1543-0AA01 |
Category | Communication Processor |
System family | SIMATIC NET / SINEC |
Stores quantity | 13 |
Data confidence | high |
Manuals filed (007 - Manuals)
- hb89e_cp143_00-07.pdf — CP143 SINEC H1 communication processor manual (English)
- Manual CP1430 English Vol1.pdf — SINEC CP1430/CP143x communication processor manual Vol 1
- SINEC_CP1430TF_Vol.1_e.pdf — SINEC CP1430 TF communication processor manual (English)
Notes
Confirmed via Scribd CP5430 manual excerpt and Xiatong Automation cross-reference matching exact order number and PROFIBUS/SINEC L2 application.
