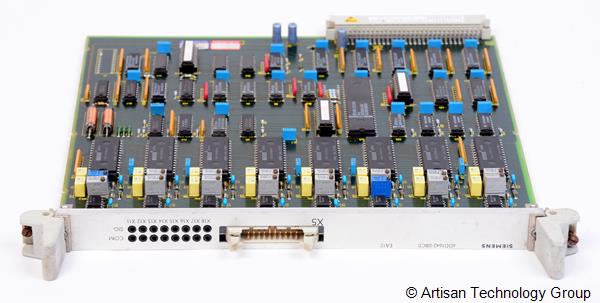

EA12 — Analog I/O
Siemens (SIMADYN D) · EA12 · 6DD1642-0BC0
Description
The EA12 is an analog output module for the SIMADYN D control system, providing 8 analog outputs at ±10 V for driving setpoints or actuator interfaces from the SIMADYN D control program via the L/C backplane bus.
Key specifications
Parameter | Value |
Function | Analog output module for SIMADYN D |
Channels | 8 AO |
Output range | ±10 V DC |
Bus | SIMADYN D L-bus/C-bus |
Reference
Field | Value |
Manufacturer (OEM) | Siemens (SIMADYN D) |
Model | EA12 |
Part number | 6DD1642-0BC0 |
Category | SIMADYN Module |
System family | SIMADYN D |
GT stores quantity | 6 |
Data confidence | high |
Manuals filed (007 - Manuals)
- Package-Montage.pdf — SIMADYN D hardware/assembly reference covering module installation
Notes
Function and channel count confirmed by Siemens NS Automation SIMADYN D brochure ("EA12 analog output module, 6DD1 642-0BC0, 8 AO, ± 10 V") and reseller listing (Joyyparts).
Source: Sohar 1 DCS field-component stores inventory (Total GT_BOP). Filed in the AI HW Knowledge Base.
